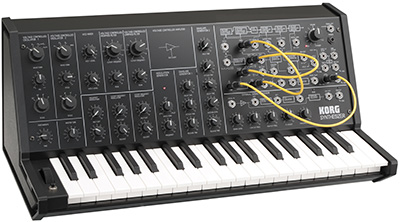

Korg MS20 Mini

The incredible MS20 has been reproduced 86% of its original size in the form of the new MS20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and retains the looks of the original MS20 which has become a retro classic synth.

The MS-20 mini will amaze you with its absolutely authentic analog synth sound.

A complete replication of the original analog circuitry

The MS-20 mini painstakingly replicates the original MS-20. A development team led by the original engineers themselves worked to recreate the original circuitry, and when it was necessary to substitute a part, these engineers made the decisions based on careful listening, in order to reproduce the original sound faithfully.

View The Official MS-20 Mini

In fact, the sound of the MS-20 mini has a somewhat bright and extreme quality to it because its sound is that of an original MS-20 in mint condition at the time it went on sale, before any of the components aged.

Self-oscillating high-pass/low-pass filters with distinctive distortion

One of the greatest characteristics of the MS-20 was its powerful filters, which provided resonance on both the high-pass and the low-pass. Maximizing the resonance would cause the filter to self-oscillate like an oscillator, producing a distinctive and dramatic tonal change that was acclaimed as inimitable, and was later used on the monotron and monotribe. The filter circuit was changed mid-way through the production lifecycle of the MS-20; the MS-20 mini uses the earlier filter, which was felt to be superior due to its more radical sound.

2VCO / 2VCF / 2VCA / 2EG / 1LFO structure

The MS-20 mini uses two oscillators with ring modulation, and envelope generators with hold and delay as per the original MS20 design. The VCA maintains the basic design of the original, but its been modified to produce less noise than the original.

External signal processor (ESP) for processing an external signal

The ESP carries on the experimental spirit of MS-20; it allows you to use the pitch or volume of an external audio source to control the synthesizer. For example you can input an electric guitar and use the MS-20 mini as a guitar synthesizer, or input a mic and use it as a vocal synthesizer.

Extremely flexible patching system

The patching system provided to the right of the panel lets you create complex sounds by plugging-in cables to change the connections between the various units. The possibilities are limited only by the users imagination; different combinations of the modulation input/output and trigger, sample and hold, and noise generator can produce an incredible variety of sounds. By patching according to the MS-20 flow chart thats printed on the panel, even the beginner can start taking advantage of these possibilities right away.

Faithful recreation of the MS20 at 86% of the size

MS-20`s design concept started by borrowing from the vertical layout found on larger and more expensive modular synths of its time, and then creating a more portable, inexpensive, and easier to use version.

To make it even more approachable, the MS-20 mini has been shrunk to 86% of the size of the original MS-20. In spite of its smaller size, meticulous care has been taken to accurately reproduce the knob design and the printing. The patch cables have been changed from 1/4" phone plugs to mini-plugs, and the newly-designed keyboard is also 86% of the original size.

Replicates every details of the original

Our effort to remain faithful to the original is not limited to the unit itself. Even the package that contains the unit replicates the original as far as possible. Also included are the original MS-20 owners manual and settings chart, explaining how to create sounds. Now you can experience the excitement of the MS20, just like it was during its original release in 1978.

MIDI IN connector and USB connector

The MS-20 mini provides a MIDI IN jack for receiving note messages, and a USB-MIDI connector that can transmit and receive note messages. You can even connect the MS20 mini to your computer and play it from a sequencer.
