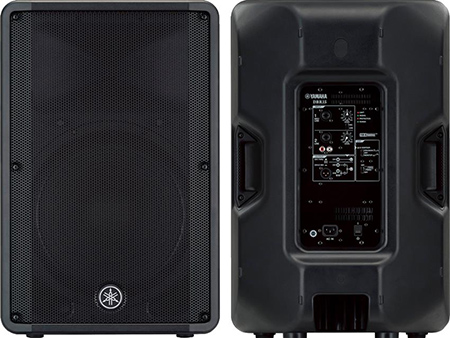

Yamaha DBR15 Powered Speaker 1000W Refurbished (Single Speaker)
POWER TO PLAY
Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10", 12" and 15" models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band's live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
High-Efficiency 1000W Class-D Amplifiers
The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.
Smart Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimised 50 degree wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.*Speaker brackets and eye-bolts are not included.
Functional Speaker Cover (Optional Extra)
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.- Trilaminar fabric of durable polyester, with inner PVC coat and cushion inside for impact suppression.- Front mesh allows sound reinforcement with the cover as well as ensures amp cooling.- Rear roof allows easy access to the rear panel with the cover on.- Handle slit allows easy access to the handles for carriage- Inner pocket additional space for carrying cables.*NOTE: The covers do NOT guarantee water-drip protection.
Yamaha DBR15 Powered Speaker 1000W Specifications
- Speaker type
- 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB)
- 50Hz - 20kHz
- Nominal coverage
- Horizontal: 90 degrees
- Vertical: 60 degrees
- Nominal coverage
- LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
- HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover
- 2.1kHz: FIR-X tuning (linear phase FIR filter)
- Output power
- Dynamic:1000 W (LF: 800 W, HF: 200 W)
- Continuous: 465 W (LF: 400 W, HF: 65 W)
- Maximum output level (1m; on axis)
- 132dB SPL
- I/O connectors
- INPUT1: Combo x1
- INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
- OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors
- D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation
- Fan cooling, 4 speeds
- Power requirements
- 100 V, 100-120V, 220-240 V, 110/127/220V
- Power consumption
- 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material
- Plastic
- Finish
- Black
- Handle
- Side x2
- Flying and mounting hardware
- Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket
- 35mm (Bottom x 1)
- Dimensions
- Width: 455mm (17.9")
- Height: 700mm (27.6")
- Depth: 378mm (14.9")
- Net weight
- 19.3 kg (42.6 lbs)
