Yamaha DHR-12M Powered Monitor - Ex-Demo

Our ex-demo model has been supplied direct from Yamaha and comes with full manufacture warranty. It is boxed and ready to go. Condition is excellent with some very minor signs of use. If you need further details or images please do not hesitate to ask. Contact us on sales@achamilton.co.uk or call on 01772 722468.

DHR12M Main Details

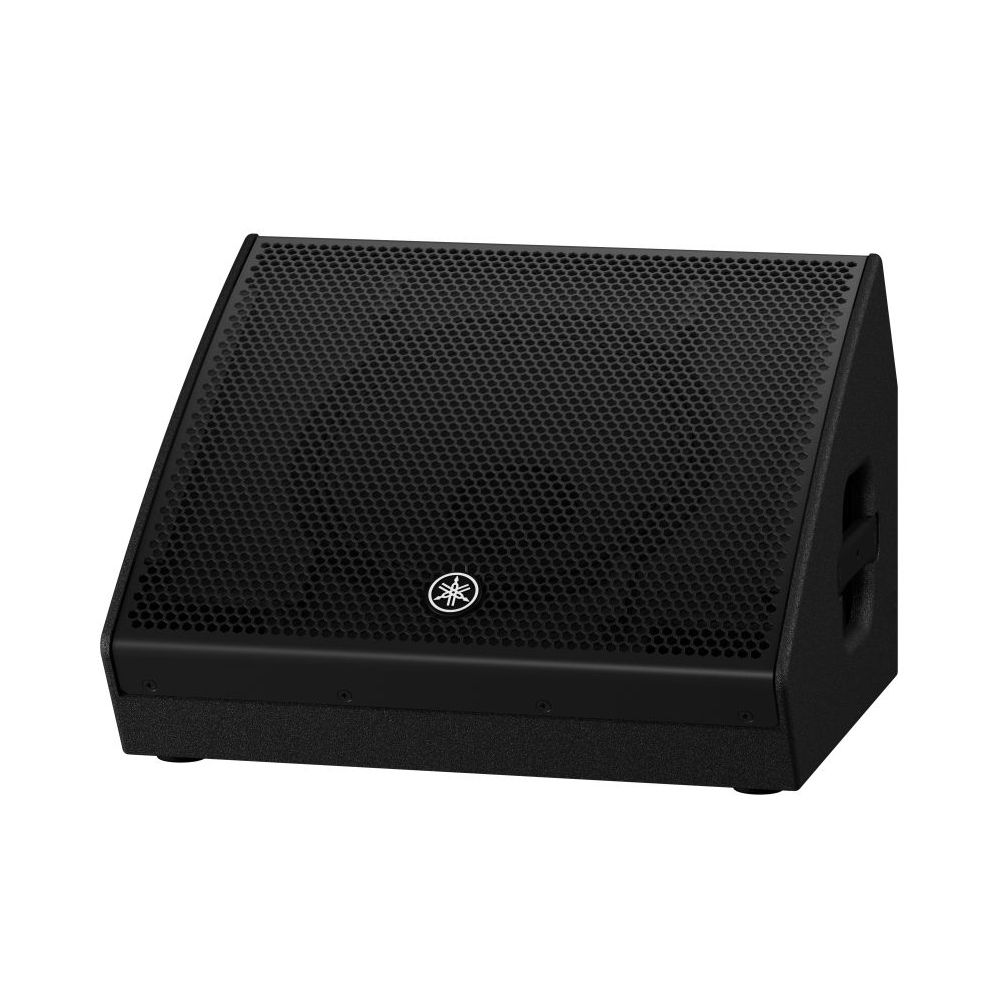

The Yamaha DHR-12M powered speaker comes in a wedge shape design and built with a plywood cabinet with tough durable outer coating. Built-in is a 1000 watt bi-amplified, amplifier system with multiple inputs and clever technology to ensure the best sound quality at all volume levels. If you need a speaker cable of high power and quality sound all in one then the DHR12M will deliver.

DHR-12M Main Features

• The co-axial driver delivers precise, smooth phase and frequency response characteristics
• Plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Yamaha DHR-12M Co-Axial Speaker

This is the first Yamaha speaker to feature a co-axial compression driver which offers a smooth frequency response characteristic making it ideal for use as a floor monitor.

DHR-12M 1000w Amplifier

The DHR-12M Class-D amplifier is capable of producing up to 1000 Watts of power, achieving an SPL of 129 dB. For both on stage front of house or monitoring, the dynamics and response of the amplifier will easily keep up with demand. For continuous rated power the amplifier is rated at 465w (LF: 400 W, HF: 65 W). In combination with the advanced speaker design, protective and sound processing circuits, the DHR-12M is a truly stunning monitor with great quality.

On-Board 2 Channel Mixer

The Yamaha DHR-12M has two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources.

DHR-12M FIR-X Tuning

FIR-X tuning simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.

All signals are precisely processed by a high-performance processor for high definition sound quality. All full-range models employ high-precision 24bit discrete A/D and D/A converters with superior S/N ratio and dynamic range.

Built-In Protection Features

The Yamaha DHR-12M employs many of the same protection functions used in Yamaha's top-class PC-D Series professional power amplifiers. A microprocessor and high-power DSP monitor the status of the power supply, power amplifiers, transducers and ongoing signals to protect all aspects of each component. As a result, these speakers can perform to their full potential while ensuring reliable operation in even the most severe conditions.
