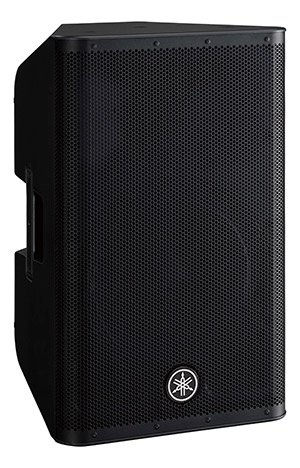

Yamaha DXR12 MKII Powered Speaker

The Yamaha DXR12 MKII offers an incredible 1100 watts of amplification combined with a 12" woofer, a re-designed tweeter, powerful intelligent sound processing and a built-in 3 channel input mixer. The speaker is ideal for gigging musicians and especially good when used as a pair for bands and performance environments. There is a 7 year warranty available for complete peace of mind so you know you can always rely on your speaker when you need it most.

Main Features

• 12" 2-way, Bi-amp powered speaker
• Powerful 134dB SPL - 1100w amplifier
• Ultra-Precise 48Bit DSP Processing
• D-Contour - intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels
• FIRX-Tuning - optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers
• Extensive DSP Protection Functions
• 3 Channel Inputs with individual volume control
• Rugged, non-resonant ABS enclosures
• Rigging points for rigged application using standard eyebolts or easy mounting on optional U-Brackets
• 7 Year warranty (registration required)

DXR12 MKII With 7 Year Warranty

Get absolute peace of mind when purchasing Yamaha DXR12 MKII speakers. Having been built as a premium speaker, Yamaha offer up a 7 year warranty which backs-up their incredible build quality. The speakers need registering within the first 6 months to qualify for the warranty, but it is completely free so you know your back is covered just in-case something goes wrong.

Whats Improved

New DXR12 MKII models have a brand new and improved 1.75" Neodymium compression driver for optimum clarity. This has been combined along with advanced 48Khz sound processing and filter systems derived from the DZR top of the range models. The result is an incredible sound with distinct clarity and detail above and beyond the original models.

DXR12 MKII D-Contour - Intelligent Dynamic Control

D-CONTOUR is an intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels. By constantly monitoring the output of multiple frequency bands and calculating the optimum EQ adjustments for each, even the maximum sound output maintains outstanding clarity and musicality. With the DXR12 MKII, D-CONTOUR provides a more detailed tuning of your sound with two different settings: FOH/ MAIN mode or MONITOR mode. FOH/MAIN mode boosts low-frequency to compensate for low-end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand.

MONITOR mode is completely optimized for floor monitor application by intelligently taming down the low-frequency that adds up due to floor reflection, smoothing out a wide range of frequency bands to give you stunning clarity for monitoring your sound. Both of these presets were perfected by performing countless listening tests with skilled sound engineers, giving you a multi-band compressor that performs dynamically, delivering consistent sound with low distortion at any output level.

DXR12 MKII On-board 3-Channel Mixer

The DXR12 mkII features a flexible onboard mixer with a variety of input, making it ideal for simple vocal/ instrument amplification. With its flexible IN/OUT, the DXR mkII Series can comprise a full sound reinforcement system, or seamlessly integrate into a setup utilizing DZR or DXS Series speakers.

The DXR12 mkII mixer can handle up to three simultaneous inputs. It accepts both Mic and Line level input, giving you the flexibility to connect to a variety of sources from microphones to line level instruments and portable audio devices. When in MIC position, a HPF is automatically activated to roll off unwanted low frequency.

The mixer also features a flexible HPF control to perfectly match with DXS subwoofers. You can choose either 100Hz or 120Hz depending on which subwoofer you are using in combination with the DXR12 MKII. DXS Series subwoofers feature flexible LPF settings allowing you to find the optimal HPF/LPF balance for your sound.

Each channel has an individual volume control, letting you mix three discrete audio sources. THRU out passes the input signal from Channel 1 and LINK OUT sends mixed signal from all channels-ideal for daisy-chaining or routing the signal to another destination. LINK OUT is very useful for configuring a compact SR system with another DXR, while LINK MODE allows you to easily switch between stereo or dual-mono configurations.

Extensive DSP Protection Functions

The Yamaha DXR12 MKII takes things a step further in trying to get the very most out the amplifier but still protecting the internal components so you can rely on your sound at any time. DXR12 MKII speakers employ many of the same protection functions used in Yamahas top-class TXn Series professional power amplifiers. A microprocessor and high-power DSP monitor the status of the power supply, power amplifiers, transducers and ongoing signals to protect all aspects of each component. As a result, these speakers can perform to their full potential while ensuring reliable operation in even the most severe conditions.
