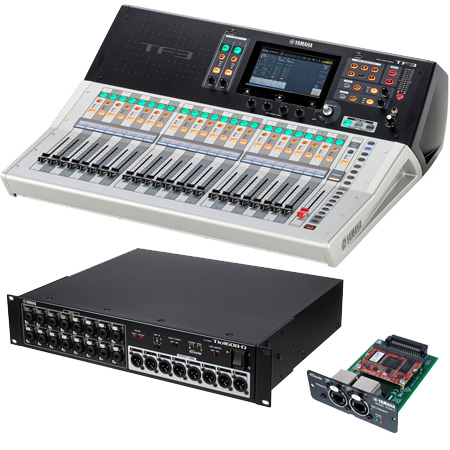

Yamaha TF3 Digital Mixing Console with NY64D and TIO1608 Dante Interface

The Yamaha TF3 bundle offers the ultimate in audio mixing capability and quality. The TF3 itself offers high quality sound processing at 48kHz, large colour touch screen interface, motorised faders, 8 DSP effects units and a versatile array of features and connectivity for virtually any live/ recording situation you will encounter.

This bundle combo with the NY64D Dante interface card and TIO1608 breakout box expands on the standard channels and adds a further 16 microphone/ line inputs and 8 line outputs using the same 'D-Pre' technology as found in the TF for only the best sound quality.

Yamaha TF-3 Bundle Features

• 24 + 1 fader configuration
• Input channels: 40 mono, 2 stereo, 2 return.
• Busses: 20 Aux (8 mono, 6 stereo), Stereo, Sub, 4 matrix.
• Local I/O: 24 mic/line + 2 stereo line in, 16 out.
• TIO1608 adds a further 16 microphone/ line inputs and 8 line outputs
• Recallable "D-PRE" Microphone Preamplifiers provide an ideal sonic foundation.
• Intuitive user interface optimized for touch panel operation.
• Traditional Overview and Selected Channel Interfaces
• "1-knob COMP" & 1-knob EQ make it easy to dial in the ideal sound
• "QuickPro Presets" provide instant access to pro sound setups.
• "GainFinder" supports precision gain setup
• "DCA Roll-out" enhances group control.
• "SENDS ON FADER" buttons instantly bring the specified AUX or FX bus levels up on the faders for easy verification and adjustment.
• Seamlessly integrated remote control and offline editing via an Apple iPad or other computing device.
• Direct 2-track recording to USB storage devices, or 34 channel multi-track recording/ playback to a DAW via USB.
• Multitrack recordings can be used for "virtual sound checks" when performers aren't available.
• 1 expansion slot for NY64-D audio interface card
• Other features: 8 Powerful Processing/Effect Units, User Defined Knobs, User Defined Keys, 8 DCA groups, and more.

Remotely Control Mixes And Monitor Feeds

Yamaha's custom apps allow remote in-depth control and mixing for the engineers through to custom monitor mixes for the musicians. Apps include:

• TF Editor - Complete interface for editing and setup of TF Consoles
• TF StageMix - allowing remote mixing from audience seating, in front of floor monitors, or any other listening position. It can also be used at the console as an extension of the console's own interface
• MonitorMix - Allows individual wireless AUX mixing from up to 10 iPad, iPhone, iPod touch or Android devices simultaneously. Each performer can have convenient control over the AUX/ Monitor mix assigend to them

Dante Expansion - NY64D

The NY64D allows the connection of the bundled TIO1608 and in fact can allow up to 3 TIO1608 interfaces. The Dante network system is world renowned offering super fast lo latency audio at top quality. Patching can be enabled via "Dante Controller" while Remote HA can be controlled by "R Remote" software.
