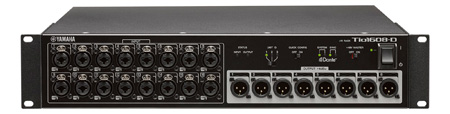

Yamaha TIO1608-D - Dante Interface
The Yamaha TIO1608-D is a Dante equipped I/O interface with 16 mic/ line inputs and 8 line outputs. It connects up with the NY64D card on the TF mixers using an optional Cat5e/ Cat6 cable and offers the same quality of mic-pre as found in the Yamaha TF mixers. The TIO1608-D is also compatible with the Yamaha DM3 dante mixing consoles.
Being a Dante unit it is also compatible with other products on the market but please do check your product for compatibility information.
Yamaha TIO1608-D Main Features
- 16 Mic/ Line inputs and 8 line outputs
- Quick Config mode makes it easy to create a system based on the Yamaha TF Series Digital Mixing Console
- Remote control of the built-in head amps with TF series mixers
- All inputs offer combi TRS/ XLR connections
- Connect up to 3 units simultaneous with TF series mixers
- Compatible with Yamaha DM3 Dante verion mixing consoles
- 48kHz inputs or 44.1kHz compatible
Yamaha TIO1608 Specifications
- Sampling Frequency Response: 44.1kHz or 48kHz
- Frequency Response: 20Hz - 20kHz (+0.5dB, -1.5dB) @ 1kHz, Input to Output, Fs=44.1kHz or 48kHz
- Total Harmonic Distortion: Less Than 0.1 +4dBu @ 20Hz-20kHz into 600Ω, Gain=+66dB. Less Than 0.05 +4dBu @ 20Hz-20kHz into 600Ω, Gain=6dB
- Signal Delay: Less than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
- Dynamic Range: 108dB Input to Output, Gain=6dB/112dB, DA Converter
- Power Requirements: 100V-240V, 50Hz/60Hz
- Power Consumption: 50W
- Dimensions: 480mm x 88mm x 364mm (W x H x D)
- Accessories: Owner's Manual, Power Cord(2.5m), Rubber stoppers(4)
- Weight: 5.7kg
