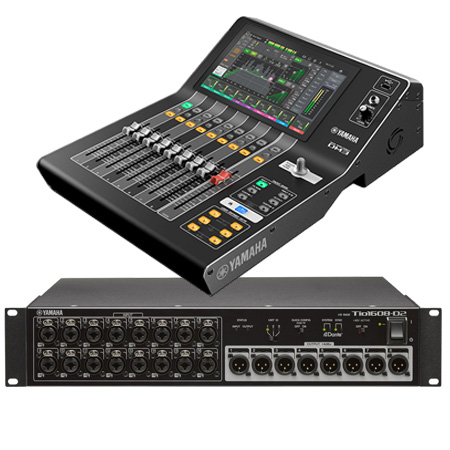

Yamaha DM3 Dante Digital Mixing Console With TIO1608-D2 Interface

The Yamaha DM3 Dante bundle offers huge I/O offerings for both live, studio and even streaming applications. It will allow engineers to capture the on-stage sound accurately, without coloration, and then add creative touch as required. Utilizing a 9" touchscreen and a single Touch & Turn knob for managing most of the console's operations it is compacvt yet incredibly intuitive to use. Having Dante it links with the bundled TIO1608-D2 audio interface which connects via a single CAT5 cable. The new 1608-D2 interface has 96kHz processing offering a much cleaner, more detailed and transparent sound for those looking for the very best in audio quality.

Due to its versatility you can easily use it for live work on stage, use it for streaming live music and podcasting, or even use it in the studio with its multi-channel USB audio interface and DAW Remote capabilities. With a footprint of just 320 x 455 x 140mm it will fit in just about anywhere and can easily be taken venue to venue.

Yamaha DM3 Dante Main Features

• 96kHz High quality inputs/ pre-amps for super-clear, detailed sound
• Remote apps such as DM3 Editor and DM3 Stagemix
• Inputs: 16 Mono + 1 ST + 2FX
• Bus: 6 Mix + 2 FX + 2 Matrix
• 9 Motorised faders and 1x Touch & Turn Knob
• Analog input types: 16 MIC/LINE
• Analog Outs: 8 (XLR)
• 18 X 18 audio interface over USB to DAW
• Dante network connectivity built-in
• 8 FX & GEQ on Mix/Stero bus
• DAW Remote (HUI)
• Cubase AI & VST Rack Elements

Yamaha TIO1608-D2 Features

• 16 mic/line inputs and 8 line outputs
• control gain from DM3 console remotely
• Patching can be enabled via "Dante Controller"
• 96kHz inputs for supreme audio quality

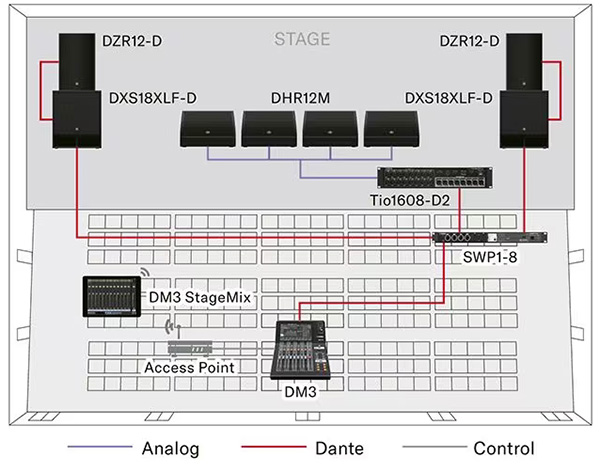

System Example with DM3 and TIO1608-D2

TIO1608-D2 allows you to easily connect a DM3 digital mixer system. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

DM3 Huge 9" Touch Screen Interface

Despite its compact size, Yamaha have equipped the DM3 with a huge 9" touch screen interface with both light and dark mode options. The high quality display gives full colour access to every feature of the system with a simple touch or gesture. For example, you can easily adjust a parametric EQ using drag and pinch to move frequency and Q control, or use the on screen Qwerty keyboard to enter names for channels or custom library file storage. It has a superb response and is very clear to use no matter what lighting conditions.

Comprehensive Streaming Features

The DM3 is equipped with abundant analog I/O and USB terminals, making it possible to input audio and transmit the mixed audio directly to a computer with streaming software launched. With stereo and matrices, audio routing provides a high degree of freedom and allows mixing of audio for on-site and streaming use separately.

The Dante-equipped DM3 is ideal for standalone operation as well as for use as part of a larger streaming system featuring multiple consoles. For example, using two DM3 units allows the engineer to input the audio transmitted by Dante for on-site and streaming, or use two different mixes for these. The compact housing makes it the ideal console where space is limited, or for use in system expansion.

Yamaha DM3 - 16 Mic/Line Inputs at 96Khz

The DM3 is equipped with 96kHz audio processing and super high quality pre-amps. The quality is clearly obvious when you put instruments and vocals through the 16 Mic/Line inputs on the rear panel. Crisp high end, deep lows and a fidelity that captures every detail and richness in the sound.

DM3 - Compact and Powerful for Live Sound

Thanks to its solid metal frame, flexible patching along with Quick Pro Presets, Editor and StageMix software, minimizing system setup and configuration time is a breeze with the DM3. The 9 high quality motorized faders give clear indication of volumes/ levels whilst the display stands out offering clear information and quick access to all essential features and routing.

There are two high-quality multi-effects processors featuring eighteen types of high-grade effects including the REV HD and REV R3- the first of its kind in Yamaha mixers. Combining all this with 6 mix + 2 matrix + these 2 effects processors, the DM3 is a powerful, compact, sturdy console that you can take live music anywhere.

Yamaha DM3 - Selection Of Apps For Editing And Control On and Off Stage

With such a versatile array of features in it's arsenal, the DM3 lends itself for use in many scenarios. To add to is operability there is a range of apps that allow performers and sound engineers to take control of the sound and mix remotely.

Apps include: DM3 StageMix to remotely control the DM3 Series from on-stage, and MonitorMix, which allows each performer to adjust their own monitor.

Comprehensive Recording Features And DAW Integration

The DAW Remote function allows you to use a range of devices to control your mix and recording from anywhere in a live venue or recording environment, then take the results home for editing at your leisure. The recorded performances can be stored directly on a USB stick, on a PC connected via USB to HOST, or on a separate Dante-compatible device (DM3 only), and edited with the bundled Cubase AI software or the DAW suite of your choice.

2 Track Audio Recording Built-In or Multi-track to DAW

DM3 supports multit-rack recording via USB to Host, while simple 2-track recording is possible using a USB memory stick and the USB connector on the front of the console. Put simply, the DM3 Series offers a range of recording options that give users the flexibility to meet the demands of a variety of environments and applications.

DAW Remote Features - Streamline Music Production

DM3 operates DAW operations such as volume adjustment, play, and stop can be performed using the console's faders and buttons as physical controllers for smooth operation while arranging. The DM3 supports a variety of DAW software suites, and comes bundled with Cubase AI-a stripped-down but powerful music production software platform. Switching to DAW Remote Mode is a simple one-step operation that can be performed by pressing USER DEFINED KEYS 1 and 2 together.
