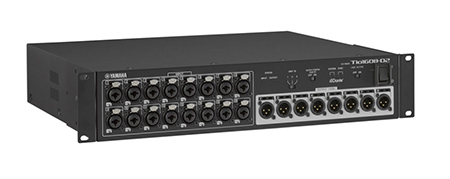

Yamaha TIO1608-D2 Dante Audio Interface Rack - 96Khz
The Yamaha Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.
The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via "Dante Controller" while Remote HA can be controlled by "R Remote" software.
*Please note that Remote HA on the Tio1608-D2 can be implemented only via the Primary port. Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.
Main Features
- 16 Microphone/Line inputs and 8 Line outputs
- External sampling frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Frequency response +0.5 -1.5 dB, 20 - 20,000 Hz, referenced to nominal output level @1 kHz, input to output
- Dimensions (W x H x D): 480 x 88 x 364 mm
- Rack mount size: 19" 2U
- Weight. 5.7 kg
Simple And Flexible Input Section
Once the basic configuration is completed you can easily assign inputs to best suit your system setup. All inputs can be assigned uniformly to the Tio Rack in an instant from the TF Series INPUT screen menu or the PATCH screen on a DM3. Users can also change each input to receive signal from multiple locations, allowing effective use of all inputs
Dante - High Reliability Network Protocol
Dante has been adopted by leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D2 you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series or DM3 can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.
Recallable D-PRE preamplifiers
The Tio1608-D2 inherits the natural, musical sensibility that we pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D2 features the same recallable D-PRE microphone pre-amplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.

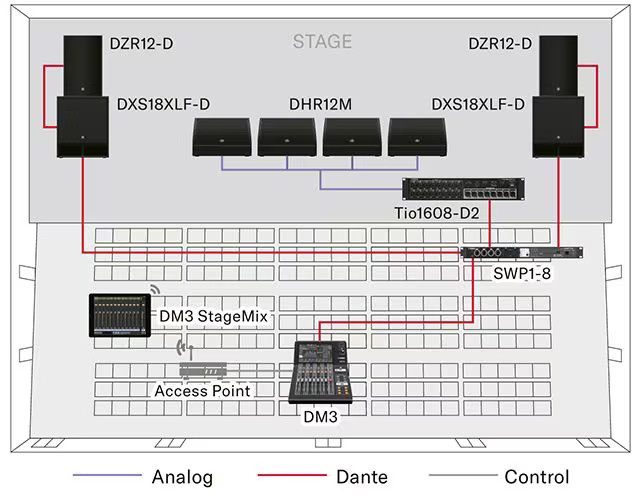

System Example With DM3
Tio1608-D2 allows you to easily connect a DM3 digital mixer system. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.
Yamaha TIO1608 D2 Specifications
General Specifications
- External Sampling Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Signal Delay: Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
- Total Harmonic Distortion: Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
- Frequency response: +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
- Dynamic Range: 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
- Hum and Noise Level;
Equivalent Input Noise: -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
Residual Output Noise: -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter - Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
- Heat Dissipation: 100-240V, 50/60Hz, 43.5kcal/h
- Power Requirements: 100-240V, 50/60Hz
- Power Consumption: 50w
- Dimensions: (W) 480mm (18.9") x (H) 88mm (3.5") x (D) 364mm (14.4")
- Weight: 5.7kg (12.6lbs)
- Accessories: Owner's Manual, Power Cord (2.5m), Rubber stoppers (4)
Analog Input Characteristics
Input Terminal 1-16
- Gain: +66dB / -6db
- Actual Load Impedance: 7.5k Ohms
- For Use With Nominal: 50-600 Ohm Mics & 600 Ohm Line
- Input Level Sensitivity: -82 dBu (61.6μV) / +10 dBu (245mV)
- Input Level Nominal: -62 dBu (0.616mV) / +10 dBu (2.45V)
- Input Level Max Before Clip: -42 dBu (6.16mV) / +30 dBu (24.5V)
- Connector: Combo Jack (XLR-3-31 type *2 or TRS phone *3)
In these specifications, 0 dBu = 0.775Vrms.
+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
*1. Sensitivity is the lowest level that will produce an output of +4 dBu (1.23V) or the nominal output level when the unit is set to maximum gain.
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
Analog Output Characteristics
Terminal 1-8
- Actual Source Impedance: 75 Ohm
- For use with Nominal: 600 Ohm Lines
- Output Level Nominal: +4 dBu (1.23V)
- Output Level Max. Before Clip: +24 dBu (12.3V)
- Connector Type: XLR-3-32
- Balanced / Unbalanced: Balanced
