Yamaha DZR15 15 Powered Speaker Ex-Demo
We do not have this model available as ex demo / refurb at the moment
Please feel free to call us so we can advise if we are expecting a shipment
New version is here - Click
Other Options
info | specs |
---|

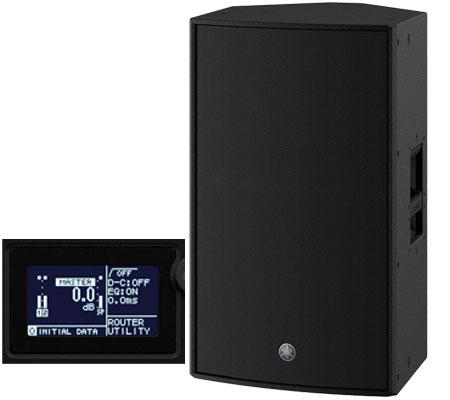

The Yamaha DZR15 speaker is as good as it gets in the Yamaha speaker range. Absolute world class sound quality and incredible response and build quality that will not let you down. A 15" speaker and 1" Titanium diaphragm compression driver unit combined with 2000w bi-amp and advanced sound processing technology will ensure your audio has never sounded better in any venue.
Ex-Demo Models
All our Ex-Demo models are in excellent condition supplied with full manufacture 7 year warranty and boxed for complete peace of mind. Feel free to contact us if you have any questions regarding the products.
Main Features
- 2000w Bi-Amplified with 139db SPL
- 96kHz DSP and FIR filter for true high-resolution sound
- Features Advanced FIR-X tuning
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- USB for backing-up and transfer of setup data
- Rotatable horn for optimum sound no matter the speaker placement
Incredible Sound Processing
Part of the secret behind the sound quality of the DZR series is the incorporation of NEXO technologies. The advanced sound development has gone on over years to produce systems which take care of all aspects of the sound to enure the best quality at all times. For example Advanced FIR-X tuning controls the smooth frequency response for stunning clarity and sound imaging without phase distortion. Other features includes D-Countour - an intelligent multi-band compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them.
In order to ensure your speakers stay in optimum working order there is even a DSP protection system to ensure longevity of the internal components. This offers complete peace of mind knowing no matter how hard you drive your speakers your sound will remain totally reliable.
Powerful Amplification
The DZR15 speakers contain a powerful 2000w Class-D amplifier. Capable an impressive 143dB SPL, a universal switching mode power supply with PFC maximizes power output while ensuring stable and worry-free operation.
LCD Display
An on board LCD offers access to a whole range of EQ and editing features for complete sound control. The system can even be backed up to USB for easy setup of other speaker systems.
Yamaha DZR15 Technical Specification
- Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB): 34Hz - 20kHz
- Coverage area: H90゚ x V50゚ (Rotatable)
- LF: 15" Cone, 3" Voice Coil, Neodymium magnet
- HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
- Crossover: 1.7kHz (FIR-X)
- Internal Sampling Frequency Rate: 96kHz and FIR Filter
- A/D D/A Converters: 96kHz AD/DA
- Maximum output level (1m; on axis): 139dB SPL *1
- Dynamic: 2000W (LF:1000W, MF/HF: 1000W) *2
- Continuous: 1300W (LF: 920W, MF/HF: 380W)
- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x1 (V-Lock)
- Amplifier Class: Class-D
- Cooling: Fan cooling, Variable speeds
- Power Consumption: 45W (Idle), 150W (1/8)
- Handle: Aluminium die-cast, Side x2
- Rigging: M10 x12
- Width: 450 mm (17.7")
- Height: 761 mm (30.0") (with rubber feet)
- Depth: 460 mm (18.1")
- Weight: 25.2kg (55.6lbs)
- Other Features: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- Optional Extras: U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
- Floor Monitor Angle: 50 Symmetrical
- Pole Socket: 35 mm x2 (0 or -7)
