    Yamaha DZR12 monitors with free next working day delivery

    Yamaha DZR12 Ex-Demo 12" 2000w Powered PA Speaker

    We do not have this model available as ex demo / refurb at the moment

    Please feel free to call us so we can advise if we are expecting a shipment

    New version is here - Click

    Other Options

    infospecsvideos

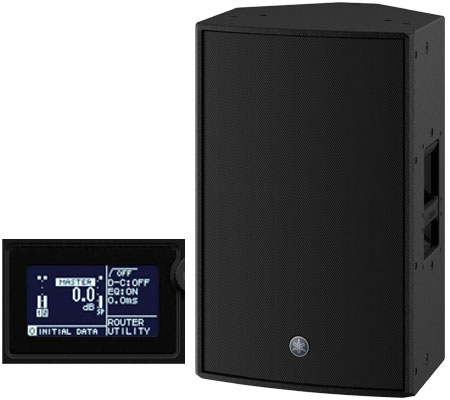

    The Ex-Demo DZR12 powered speakers are the ideal sound solution for anyone wanting the very best sound quality and reliability. The flagship DZR12 series speakers make use of advanced sound processing technology combined with 2000w built-in class-D amplifier, 12" Woofer and 1" Titanium diaphragm compression driver and LCD display for full sound control setup. The resilient wooden cabinet is made for the road and a huge 7 year warranty offers complete peace of mind.

    Our Ex-Demo models

    Supplied boxed in excellent condition, our DZR12 ex-demo models come complete with 7 year warranty - as new - for total peace of mind. If you have any questions about the ex-demo goods please do get in touch.

    Main Features

    • 7 Year Warranty
    • Robust 15mm Ply cabinet
    • 2000w Bi-Amplified Class D Amplifier capable of up to 139db SPL
    • 12" Woofer and 1" Titanium diaphragm compression driver
    • D-Contour and advanced FIR-X tuning sound processing systems
    • Rear LCD screen for full access to Eq and sound parameters with USB port for saving/ sharing settings

    Ultimate Sound Quality

    The DZR12 offers the pinnacle of Yamaha sound technology. The 12" speaker oozes depth, warmth and clarity with a massive 139db SPL output. The sound is controlled via a collection of clever sound processing features:

    • Advanced FIR-X tuning utilizes linear phase FIR filters for the crossover network and correct EQ. By smoothing out the frequency response you get stunning clarity and sound imaging without phase distortion.
    • D-Contour: An intelligent multi-band compressor that ensures the DZR12 sound stays consistent and clear no matter how hard you drive them. It works by constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each.

    Incredible Reliability

    A 7 year warranty ensures peaces of mind when buying DZR speakers. They are designed with a 15mm lightweight plywood cabinet for solid feel whilst the internal components are protected by clever DSP technology. No matter how hard you drive the unit, the components will remain protected and in top condition.

    LCD Display

    With access to EQ, connection features and settings - the LCD display makes it quick and easy to navigate. Settings can be shared between speakers or backed up via the USB connection direct to USB memory devices.

    Yamaha DZR12 12" 2000w Powered PA Speaker Specification

  • Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 39Hz - 20kHz
  • Coverage area: H90゚ x V60゚ (Rotatable)

  • Components

  • LF Transducer: 12" Cone, 3" Voice Coil, Neodymium magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet


  • Crossover: 1.8kHz (FIR-X)
  • Internal Sampling frequency rate: 96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m on axis): 39dB SPL *1

  • Power rating

  • Dynamic: 2000W (LF:1000W, MF/HF: 1000W) *2
  • Continuous: 1300W (LF: 920W, MF/HF: 380W)

  • I/O Connectors

  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k Ohms , Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x1 (V-Lock)


  • Amplifier Class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power Consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging: M10 x12

  • Dimensions

  • Width: 410 mm (16.1")
  • Height: 646 mm (25.4") (with rubber feet)
  • Depth: 394 mm (15.5")


  • Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
  • Others: USB 2.0 Host 5V 500mA for USB memory DATA storage/load
  • Floor Monitor Angle: 50 Symmetrical
  • Pole Socket: 35 mm x2 (0 or -7)
