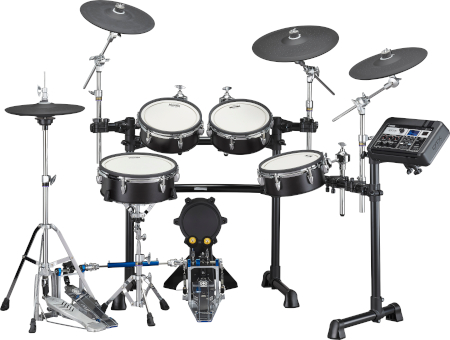

Yamaha DTX8K-X Electronic drum Kit - Black Forrest

Yamaha DTX8K-X Electronic Drum Kit - Real Wood

The New Yamaha E-Drums Series

Introducing the brand new Yamaha DTX8K-X Electronic Drum Kit. This electronic drumkit comes with real wooden shells for a stunning aesthetic in two distinct finishes, this particular model is in the stunning Black Forrest finish. The DTX8 Electronic Drumkit comes with the highly acclaimed DTX-PRO Module which is already known for being a part of the DTX6 Electronic Drum Kits. This Version of the DTX8 comes with Yamaha's acclaimed TCS (Textured cellular Silicone) Pads which over the years have garnered a large group of drummers who love the TCS pads more than its Mesh head counterpart.

---

The Yamaha DTX8 and DTX10 can also be customised to look like a traditional kit

DTX-PRO V2.0

DTX-PRO brings additional kits and features with the free Version 2 update.

• Newly added 30 preset kits, including the Recording Custom kit.
• Several kits can now be modified for realistic shell resonance and snare wire sounds (Bleed function).
• Enhanced velocity curve adjustments.
• Easy configuration of multi layer voicing
• The DTX-PRO can now be used as a host module by connecting the DTX-PRO module to the corresponding module via USB cable (USB Trigger Link function).

For other detailed information, please access the firmware version2 download page from the download tab and check the release notes.

Yamaha's iconic drum kit sound

Newly added 30 preset kits, including Yamaha's signature Recording Custom kit. The powerful, iconic, clear sound of the Recording Custom have been recorded in their entirety with the help of a renowned engineer. Tuning and adjustments have been kept to a minimum so that the original sound of the drum kit can be enjoyed.

Update your home kit with DTX-PRO

By connecting the DTX-PRO module to a compatible DTX module via USB cable, now you can use the DTX-PRO as a host module (USB Trigger Link function). In other words, if you have a compatible kit, you can enjoy the DTX-PRO sound with your electronic drum kit by adding the DTX-PRO and USB cable.

Compatible Kit: DTX900 series, DTX700 series *Some functions of DTX900 and DTX700 are not available.For more information, please refer to the "DTX-PRO DTX-PROX Reference Manual".

Yamaha DTX-PRO Module

At the Heart of the Brand New DTX8 Electronic Drumkit is the Critically acclaimed DTX-PRO Drum Module. The DTX-PRO Drum Module offers totally new audio quality with samples recorded in some of the finest studios in the world Using some of the best drumkits that Yamaha has to offer. The sounds can be treated with a whole host of effects, so drummers can tailor the sound they want to hear for whatever situation they are put in musically. Users can also load up to 1000 of their own samples in addition to the 400+ internal sounds

Unique to the DTX-PRO modules are the Kit Modifier knobs which allow the user to instantly change the sound of the kit by adjusting the real sampled room ambiance (not just reverb), Kit compression, and other effects in real time. Every channel also has built in EQ and transient control which usually only found in studio software, this allows you to change the attack and decay of the sounds to suit your needs.

Brand New DTX Sounds

The sounds for the DTX-PRO Module have been recorded in some of the best studios in Europe. Great care has been taken to record each sound from the initial stick impact to the last usable vibration. As well as the direct microphone sounds from the drums and cymbals themselves, the sounds of the instruments in the studios themselves were also captured.

Original TCS heads

Yamaha TCS (Textured Cellular Silicone) heads use a foam silicone material that contains numerous air bubbles, providing accurate firmness and rebound. The air bubbles inside serve as a cushion, softening the impact sound and reducing strain on wrists and elbows. The head surface is just like that of a coated head, and prevents the sticks from sliding.

Additionally, a unique floating structure is employed to prevent the head and body parts from coming into direct contact. No vibration is transferred to other parts of the head, and thus quietness and sensitivity are improved.

Triggering and FX

The DTX8 is much faster to trigger than previous DTX models this makes them feel much more natural to play. The DTX-PRO Module also has 256 polyphony, meaning they can play more notes at the same time.

The transient adjustment adjusts the attack and release of the sound, effectively making the instrument sound closer or farther away depending on the settings. Each channel has compression in addition to the compressor modifier. 31 effects can be assigned to each individual channel making each channel abit different.

Kit Modifiers

The Kit modifier knobs are unique to Yamaha. They allows the user to instantly change the sound by affecting the ambience, compression and effects. You can also see how much each modifiers being used and adjust it in real time.

The ambience Modifier works by adding real room ambience onto the kit sound. When the drumkits were recorded they also took the time to record and sample the actual room sound. You can add this natural ambience onto the drum kit by turning the ambience modifier.

the compression modifier works by adding compression onto the whole kit, a small amount of compression can help to bring the whole kit sound together. More compression adds attack and smack to the sound to give it a more aggressive sound.

The effects modifier works by controlling how much you hear the 2 effects processors as well as the master FX. Each pad can send different amounts of signal to either processor meaning each pad can have different effects on it if required.

Ride Hit Point detection

The Ride Cymbal On the DTX8 have hit point detection or positional sensing, this means it can sense where on the bow it is being played and adjusts the sound being played accordingly, allowing for a more natural playing experience. this is in addition to the 3 zone sensing - Bell, bow, Edge.

Key Features

• XP125SD-X DTX TCS 12" 2- Zone Snare Pad with Positional Sensing
• PCY155 3-Zone Cymbal Pad 15" for ride cymbal with positional sensing
• 3x Kit Modifier Knobs to instantly add real sampled room ambience, compression and other effects
• Independent compression for every channel
• 3 Sweepable Band EQ for every channel
• Transient adjustment for every channel
• Trainings Functions
• 256-note Polyphony
• Links to Rec'n'share App for Android and iOS for recording, practising and filming

Included

• DTX-PRO Drum Trigger Module (x1)
• XP125SD-X Snare Pad(x1)
• XP105-X Tom Pad(x3)
• PCY135 13" Pad (x2)
• PCY155 15" Pad
• RHH135 Hi Hat pad on Yamaha Hi Hat stand
• KP90 Kick Pad (x1)
• RS8 Rack System
• Power adapter, Module holder, manual

USER SAMPLES

You can load up to 1000 of your own samples into the DTX-PRO and PROX Modules. Each sample can be 16 bit or 24 bit, stereo or mono, and is loaded in from a USB drive DTX-PRO = 32Mb (6min 20secs stereo) DTX-PROX= 256Mb (25min 22secs stereo) But this can all be used for drum and percussion sounds as there are other ways to play/ trigger tracks.

LAYERING

Every zone of every pad of the DTX 8 and 10 kits can have 4 layers. Each layer can be an internal sound or a user sample. These sounds can be stacked together or alternated - each time the zone is hit, the next sound in the list is heard. This is a function called Stack/Alt

USER VOICES

The DTX-PRO and PROX Modules have a feature called User Voice which works in parallel with Stack/Alt. This means that up to 40 samples can be loaded onto any zone of any pad. These samples can then be set to play at different dynamics. You could load up to 120 samples per pad - 10 layers and 4 repeating samples on each zone.

record Via USB

You can also use the DTX-PRO and PROX to record yourself playing. You simply select the Recorder function, press Record, and start playing. You can use the module alone as an audio notepad and record for 90 seconds, or you can plug in a USB drive and record for 90 minutes. This means by attaching a microphone to the Aux In, rehearsals and lesson can be easily recorded.

If you want to record yourself playing along to a track and you do not have a computer to hand, you can simply use the DTX-PRO or PROX.

If you put the track onto a USB drive and insert it in the module, select the Recorder, find the track, press Play and then immediately Record as well, the module will record your drums over the audio track*. It is a perfect way to record demos.

TRAINING

The DTX-PRO and PROX have borrowed the best practice functions from previous DTX models. There are 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. Drummers of all levels should find the training functions a useful aid for daily practice.

HEADPHONE AMPLIFIER

It is incredibly important that drummers can hear themselves clearly, so the new DTX modules comes equipped with a high precision, low distortion, low noise, and high- power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, and has been developed exclusively for electronic drums. The DTX-PROX has both 6.35mm and 3.5mm headphone outputs for ease of use, whether it is headphones or in ear monitors. The DTXPRO has 6.35mm.

REC'N'SHARE

Rec'n'Share first became known with the EAD10. Now Rec'n'Share works with the DTX8+10 range, meaning it can be used for practice or video making. Rec'n'Share is iOS and Android compatible. The device connects with a USB cable and an adaptor (depending on the device).

PLAY, CHANGE TEMPO, ADD CLICK

Any track which you have on your device, and which you own a copy of, can be used with Rec'n'Share. Streaming sites such as Spotify and Apple Music cannot be used because of Digital Rights Management (DRM). Rec'n'Share can link to Dropbox for easy access of all your music tracks. Any track in Rec'n'Share can have its tempo changed and have a click added to it. You can also loop sections of the track for better practice sessions.

FILM, EDIT, MIX, UPLOAD

As well as recording your playing, the Rec'n'Share App can also be used to record drum videos, by using the audio from the DTX-PRO or PROX, and the video capture of the attached device. Videos can be trimmed and edited, mixes changed, and the final result can be easily shared directly from the app.

CUBASE AI

Every DTX8 and 10 kit comes with a download code to get a copy of Cubase AI, the powerful music production software from Steinberg.

By connecting the DTX-PRO or PROX to your computer with a USB cable, all recording, editing, and mixing tasks that are found in modern music production, can be handled by Cubase
