Yamaha Stagepas 200 Portable Pa System
£479.00 RRP £645
Out of Stock
Available to Order Estimated delivery Call 01772 722468Free Mainland UK DeliveryNext working day on orders placed before 2pm
Other Options
info | specs | videos |
---|
Yamaha Stagepas 200 - 180w Compact Portable PA System
The 300mm wide cube-like Stagepas 200 portable speaker system offers 125db SPL of high quality sound. It is equipped with 5 mixing channels, Bluetooth, remote app control, can be pole mounted or even sat on the floor or table top at an angle. No matter what situation you are in, the portable and compact size of the Stagepas 200 makes it the perfect companion for solo artists or small groups.
Limited Time Offer With Free Yamaha YDM505 Mic
Buy a new Stagepas 200 before January 31st 2025 and receive a free YDM505 microphone worth over £100! This is a great limited time offer. Encased in a sleek metal body, the YDM505 Series microphones feature a custom-designed cardioid capsule that flawlessly captures your sound so you hear crystal-clear audio on the other end. They also have a built-in insulator to reduce handling noise and come complete with bag and mic holder.
Stagepas 200 Portable Pa System - Main Features
- Weighs only 12Kg
- Powerful 180W amplifier (LF: 150 W, HF: 30 W) with an SPL of 125dB
- 90 x 90 degree sound coverage area
- 5 Channel inputs (Mono x3 + Stereo x1)
- Built in high quality SPX effects for all channels
- STAGEPAS Controller app offers real-time remote control of both volume and EQ and more in depth detail of parameters
- Wireless audio playback with Bluetooth audio
- Can be pole mounted or used on its base with a 30 or 60 degree angle setting.
The Yamaha Stagepas 200 is fully equipped for solo artists or small groups alike. The mixer section hosts 5 channel inputs consisting of 3 Mic pre-amps and a stereo input with Bluetooth. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound.
Despite its compact 300mm width, the Stagepas 200 offers a staggering 125db SPL. The 180w built in bi-amplifier offers superior output quality and high volumes using a specially designed coaxial speaker.

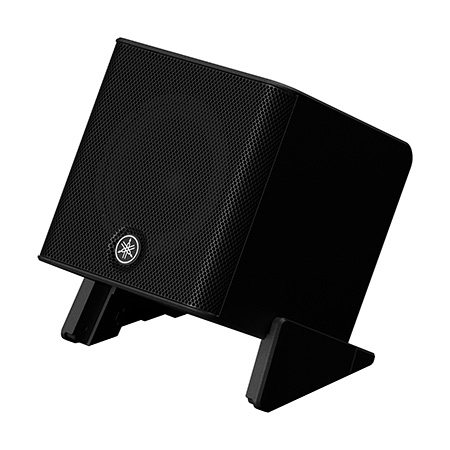

Being able to use it on the floor, tabletop or pole mount makes it incredibly versatile and suited for virtually any environment. The base itself has 2 angle sets at 30 or 60 degrees so it can be tilted so suit its height and location. The speaker also has a 90 degree horizontal and vertical coverage of sound ensuring your audience can hear every detail.
Take control of the Stagepas 200 speaker with the free Stagepas app. The app offers all sorts of features in detail and full wireless control of volume, EQ, Ducker, effects, audio playback, setting storage and more. The convenience of using a wireless app allows you to tailor your sound to the room by being able to take control from an audience standpoint instead of being behind stuck your instrument or mic.
Yamaha Stagepas 200 Specification
- Type: 2-way Bi-amp Powered Speaker with mixer
- Mixing channels: 5 (Mono x 3 + Stereo x 1)
- Input channel functions: Hi-Z: CH2/3, 1-knob EQ/preset: CH1-3/ST
- Output channel functions: MODE (SPEECH/MUSIC/CLUB)
- Inputs: Mono x 3 (mic/line) + Stereo/Mono x 1 (line)
- Outputs: Monitor/Link out x 1
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Control and others: STAGEPAS Controller (iOS/Android app)
- On-board DSP processors: SPX digital reverb (4 program, parameter control), delay, chorus
- Speaker type: Coaxial speaker with compression driver
- Frequency range (-10dB): 60 Hz - 20 kHz
- Coverage area: H 90" x V 90"
- Crossover: 2.0 kHz
- Maximum output level (1m; on axis): 125 dB SPL *1
- Components LF: 8" Cone, 2.0" voice coil
- Components HF: 1" throat compression driver, 1.4" voice coil
- Amplifier class: Class-D
- Power rating: 180 W (LF: 150 W, HF: 30 W)
- Cooling: Natural convection (no fan)
- Power consumption: 10 W (Idle), 20 W (1/8 power)
- Power requirements: 100-240 V 50/60 Hz, or 29.6 Vdc
- Cabinet material: Plastic (ABS)
- Handle: Top x 1
- Pole socket: ∅35 mm x 1 (Side)
- Floor Monitor Angle: 30 or 60
- Dimensions (W x H x D): 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
- Weight: 12kg
- Accessories: Power cord x 1, Battery x 1
- Options: Battery: BTR-STP200, Carrying case: CASE-STP200
