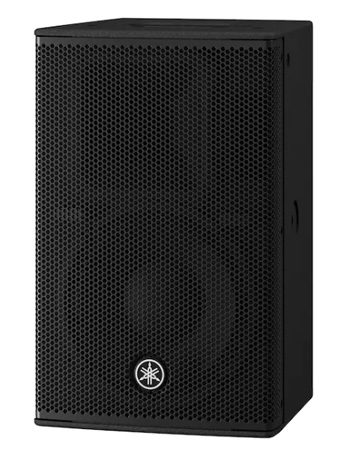

Yamaha DHR10 Powered Speakers - Superior Quality Sound

The Yamaha DHR10 combines features found in the DZR series and DBR series product to create a sound quality and build that you expect usually only from top line premium products. The speaker cabinet for example on the DHR10 is made from plywood with a tough durable exterior coating and a built in 1000w amp. The wooden cabinet derived from the DZR series means the sound produced is not only detailed but rich in tone and bass, packing a punch weigh bigger than its size. We very much recommend you try them to experience the incredible sound. This 10 inch woofer model is also equipped with a rotatable HF horn and an optional dedicated UB-DXRDHR10 U-bracket for use in fixed installations.

Yamaha DHR10 Main Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

On-Board Mixing With Yamaha DHR10

The rear panel of the DHR10 has two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources.

If you wish to connect 2 speakers in stereo pair then there is also a direct link output which can be used mono thru or stereo link out to another DHR powered speaker.

Plywood Cabinet - Enhanced Build and Sound

The cabinet of the DHR10 is designed similar to that of the flagship DZR models using a plywood construction with a toughened durable outer black coating offering great protection. The wood also has a play in the excellent quality of sound due to its weight/ design. You will find the bass in rich and deep, top end is clear and detailed while the mid-range is warming creating an overall rich and detailed sound from a compact speaker.

Yamaha DHR Built-In Protection

One of the advantages of DHR active loudspeakers is that the combination of transducers and amps has been perfectly optimized. During the development of the DHR series, the durability of each transducer was tested, and the overall amp output through countless indoor and outdoor listening tests. Based on the test results, Yamaha were able to set the optimal limiter point for each model using precise DSP control.

In addition to the optimal limiting, DHR speakers employ many of the same protection functions used in the top-class PC-D Series professional power amplifiers. A microprocessor and high-power DSP monitor the status of the power supply, power amplifiers, transducers and ongoing signals to protect all aspects of each component. As a result, these speakers can perform to their full potential while ensuring reliable operation in even the most severe conditions.

Ultra Precision DSP Processing

The DHR10 uses Yamaha's proprietary FIR-X tuning, utilizing linear phase FIR filters for the crossover network. FIR-X tuning simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.
