Current Model

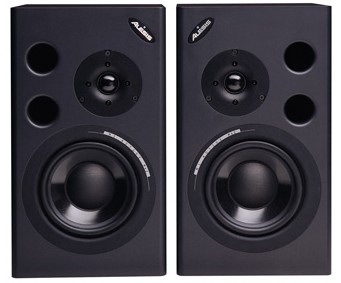

Alesis M1ActiveMKII
This instrument is discontinued
Other Options
info |
---|
The Alesis M1 Active™ Biamplified Reference Monitor offers the incredibly accurate response that perfectly translates to every playback system. Its internal active crossover and custom-designed dual amplifiers ensure an extremely consistent performance under a variety of different studio conditions and program material.
The Alesis M1 MKII Active Monitor Features:
-
Ported Enclosure
-
6.5\" non-woven carbon filter woofer - Shielded 75w
-
1\" silk dome with medium viscosity ferrofluid coolant and dual magnet shielded configuration 25w
-
Active Bi-Amplifiers and Electronic Crossovers
The MKII active monitors are a collaboration of Alesis development and highest quality sound technology for your pleasure and use. Designed to make mixing a breeze and for overall accurate flat mixing the M1 active MKII monitors should be in your home/ studio setup.
Specifications:
- Low Frequency Driver: 6.5\" non-woven carbon fiber with Santoprene surround and dual magnet shielded configuration
- High Frequency Driver: 1\" silk dome with medium viscosity ferrofluid coolant and dual magnet shielded configuration
- Crossover: 1500Hz, 8th-order, 48dB/octave filters
- Input Impedance: 20k_ balanced, 10k_ unbalanced
- LF Filter: 2nd order, \"optimal Q\" high pass, +1dB boost@50Hz
- LF Amplifier: 75 watts, 8_ load
- LF Amp Distortion:less than 0.03% thd @ 30w
- lf amp slew rate: 19V/µsec
- LF Amp S/N Ratio: >110dB, ref. 60W @ 8_, A-wtg., 1kHz
- HF Amplifier: 25 watts, 4_ load
- HF Amp Distortion: less than 0.06% thd @ rated power
- lf amp slew rate less than 9V/µsec
- HF Amp S/N Ratio: >112dB @ rated output
- Frequency Range: 38 Hz - 23.5 kHz (-10dB point)
- Connectors: Combination XLR-1/4\" jack with input level control
- Dimensions: (WxHxD) 8.5\"x15\"x9.75\" (381mm x 216mm x 248mm)
- Weight: 19.5 lbs. (8.9kg) each.
