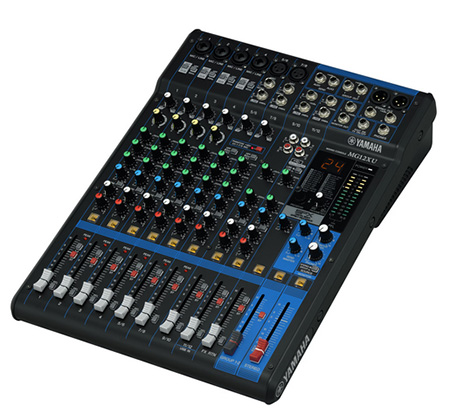

Yamaha MG12XU 12 Channel Mixing Desk - Refurbished

Our refurbished Yamaha MG12XU mixing desk offers stunning sonic clarity, fully featured mixing capabilities and has effects and USB all built-in. It comes complete with its box, power supply and full manufacture warranty for complete peace of mind. If you wish to have any specific details of our refurbished unit please get in touch with us direct on 01772 722468 or email sales@achamilton.co.uk

Yamaha MG12XU Mixer - Main Details

The MG12XU is a fully featured mixing desk with road-read build quality, superb sound processing, built-in effects and USB for audio recording/ playback. As a 12 channel desk it offers comfortably enough inputs for most average sized gigging bands and yet retains a portable design frame. Take a look at the features....

Yamaha MG12XU Main Features

• 12-Channel Mixing Console
• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
• 2 GROUP Buses + 1 Stereo Bus
• 2 AUX (incl. FX)
• "D-PRE" mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Optional Rack Mount Kit RK-MG12 Available
• Metal chassis
• Dimensions(W x H x D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
• Net Weight: 4.2 kg (9.3 lbs.)

D-PRE - Discrete Class-A Mic Preamps

MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

Huge Array of Inputs / Outputs

The Yamaha MG12XU featires high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. With XU models, any incoming source that are sent via USB can be assigned to one of the stereo channel.

In addition to the main stereo outputs (XLR L/R, TRS phone L/R), the MG12XU equipped with a comprehensive suite of output connectors, including GROUP OUT (TRS phone), AUX/FX OUT (TRS phone), MONITOR OUT (TRS phone L/R), and HEADPHONE OUT (stereo phone) connectors, allowing master outputs to be chosen to suit specific applications such as monitoring or mastering.

High Quality Digital Effects Built-In

This MG12XU model features Yamaha's acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness. You can even connect an optional FC5 foot switch for effect on / off control.

3-Band EQ and HPF

The MG12XU benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound while High-pass filters allow you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

1-Knob Compression

Compression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively. Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.

USB Connectivity - Record And Play

The MG12XU features flexible digital connectivity for quick and easy high resolution playback of digital content. Simply connect to your PC via USB, or to your iPhone / iPad (2 or later) using Apple's Camera Connection Kit / Lightning to USB Camera Adapter. The USB protocol uses asynchronous data transfer. Audio data is transferred based on highly precise audio clock signal from the MG, for high quality recording and playback.
