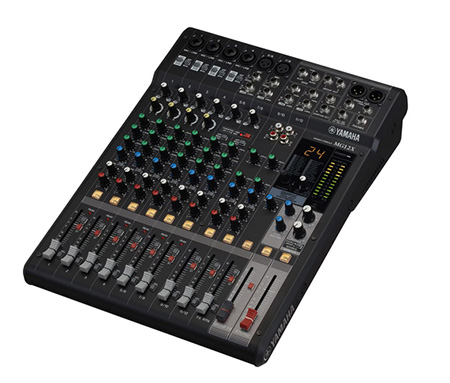

Yamaha MG12X CV 12 Channel Mixer With Effects - Refurbished
Our refurbished MG12X CV desk comes in excellent condition, boxed with full manufacture warranty. Checked by Yamaha and ourselves for complete peace of mind. This 12 channel desk is incredible value with proper faders and solid build quality for those looking for excellent sonic quality.
Yamaha MG12X CV Description
The MG12X mixer offers a large selection of 12 channel inputs combined with Yamaha's renowned high quality sound processing, built in SPX effects, faders and superior build quality with metal chassis design ready for the road. Its compact size makes it easy to transport for anyone looking for a reliable high quality mixer for live performance.
Yamaha MG12X CV 12 Channel Mixer - Main Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
- Metal chassis road ready design for superior reliability
- Weighs only 4.2Kg
Yamaha MG12X CV Mixer Specifications
- On-Board Processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom Power: Yes +48v Switchable
- Input Channels:
Mono[MIC/LINE]: 4
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE] x2 - Output Channels:
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 2
GROUP OUT: 2 - BUS: Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
- Input Channel Features:
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor Threshold: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
LEVEL METER: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] - Dimensions: (w) 308 mm (12.1") x (h) 118 mm (4.6") x (d) 422 mm (16.6")
- Weight: 4.2 kg (9.3 lbs.)
