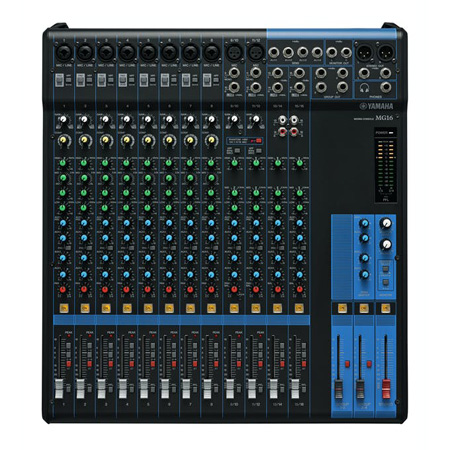

    Yamaha MG16 - 16 Channel Mixing Console Refurbished

    We do not have this model available as ex demo / refurb at the moment

    Please feel free to call us so we can advise if we are expecting a shipment

    New version is here - Click

    Other Options

    £305.00

    Yamaha MG12X CV - 12 Channel Mixing Desk With effects
    --Available Now--

    £184.58

    Yamaha MG06X 6 Channel Mixing Desk With Effects
    --Available Now--

    £289.00

    Yamaha MG10XUF 10 Channel Mixing Desk With Faders
    --Available Now--
    infospecs

    The MG16 mixer is the perfect multi-channel mixing console for live work. Its durable build quality, high quality components and 2 year warranty offer complete peace of mind and a top quality sound you expect only from much more expensive mixing desks.

    Our refurbished MG16 desk comes complete with full manufacture warranty and supplied in original box and excellent condition.

    Main Features

    • 16-Channel Mixing Console
    • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
    • 4 GROUP Buses + 1 Stereo Bus
    • 4 AUX
    • "D-PRE" mic preamps with an inverted Darlington circuit
    • 1-Knob compressors
    • PAD switch on mono inputs
    • +48V phantom power
    • XLR balanced outputs
    • Internal universal power supply for world-wide use
    • Rack Mount Kit Included
    • Metal chassis
    • 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
    • 6.6 kg (14.6 lbs.)

    Technical Specification

    Input Channels

    • Mono (Mic/ Line): 8
    • Mono/ Stereo (mic/Line): 2
    • Stereo (line): 2

    Output Channels

    • Stereo Out: 2
    • Monitor Out: 1
    • Phones: 1
    • Aux Send: 4
    • Group Out: 4

    Bus

    • Stereo: 1
    • Group: 4
    • AUX: 4

    Input Channels - functions

    • Pad: 26db
    • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
    • Compressor: 1-knob compressor (Gain/Threshold/Ratio)
      Threshold: +22 dBu to -8 dBu
      Ratio: 1:1 to 4:1
      Output level: 0 dB to 7 dB
      Attack time: approx. 25 msec
      Release time: approx. 300 msec
    • EQ High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    • EQ Mid: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking
    • EQ Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
    • Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping

    General

    • Frequency Response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
    • Total Harmonic Distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
    • Dimensions: (W x D x H) 444mm x 130mm x 500mm
    • Weight: 6.6Kg
    • Included Accessory: Owner's Manual, Technical Specifications, AC power cord
