Yamaha MG10X - 10 Channel Mixing Desk
£229.00 RRP £294
Out of Stock
Available to Order Estimated delivery Call 01772 722468Free Mainland UK DeliveryNext working day on orders placed before 2pm
Other Options
£199.00
Yamaha MG10XU Mixing Desk Refurbished--Available Now--
£269.00
Yamaha MG10XU 10 Channel Mixing Desk With USB--Available Now--
£299.00
Yamaha MG10XUF 10 Channel Mixing Desk With Faders--Available Now--
£179.00
Yamaha MG06X 6 Channel Mixing Desk With Effects--Available Now--
| info | specs |
|---|

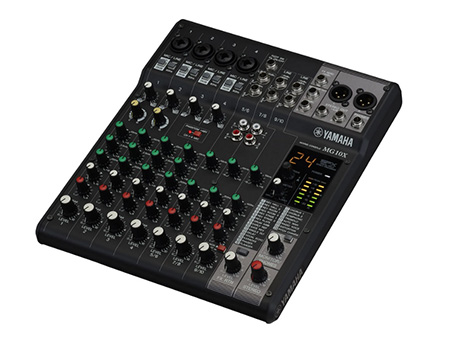

Yamaha MG10X - High Quality Audio Mixing With Effects - Without USB
Designed around the renowned MG10Xu mixers with effects and USB, the MG10X comes without the USB for those who do not need to stream audio and in turn offers a more affordable price. It still maintains the superb SPX effects processing, build quality and audio quality of the USB version. This makes it an ideal mixer for live performers wanting an affordable compact mixer, with high quality audio and effects at a great price.
Yamaha MG10X Mixer - Main Features
- D-Pre Discrete Class-A Mic Preamps for high quality mic audio processing
- MG01 Custom made op-amps with redesigned circuitry focused on high quality audio processing
- Switchable Phantom power
- Pad switches per channel to help prevent mic clipping
- 1-Knob Compressors offering easy to operate control of sound dynamics
- 3 Band-EQ on all mono channels
- Single stereo BUS control for channel grouping
- Aux send for external effects processing or monitoring
- High-quality Neutrik balanced XLR connectors on mono microphone/line channels
- XLR and jack balanced main outputs
- Superb SPX effects processing built in - add reverb to vocals or guitars for example
- Metal chassis built to last - road ready
Yamaha MG10X Mixer Specifications
- On-Board Processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom Power: Yes +48v Switchable
- Input Channels:
Mono[MIC/LINE] x4
Stereo[LINE] x3 - Output Channels:
STEREO OUT x2
MONITOR OUT x1
PHONES x1
AUX SEND - BUS: Stereo: 1, AUX[FX]: 1
- Input Channel Features:
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
LEVEL METER: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] - Dimensions: (w) 244 mm (9.6") x (h) 71 mm (2.8") x (d) 294 mm (11.6")
- Weight: 2.1 kg (4.63 lbs.)
