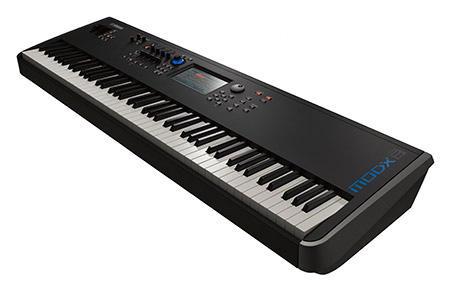

Yamaha MODX8 Music Synthesizer
This instrument is discontinued

Taking the same sound engine from the flagship Montage workstation, the Yamaha MODX8 is a synthesizer offering the most incredible real-time sound control, in-depth editing and versatile multi-channel MIDI/ Audio capabilities all built-in. It includes the renowned AWM2 sounds as well as the FM-X (FM Expanded) sound generation with classic sounds back from the legendary DX7 era. The illuminated Super Knob controller offers control for up to 128 parameters in a single instance whilst over 10,000 arpeggiator patterns bring your music to life. The MODX8 is a complete sound and production solution with a fantastic piano feel to boot.

Main Features

• 88 Note GHS (Graded Hammer) piano action
• Weighs only 13.8Kg - Truly portable
• 5.67Gb of waveforms - same as the Yamaha Montage (MOXF has 741mb)
• Super Knob Controller, Envelope Follower and Motion Sequencer
• New Rhythm Pattern Feature - Easy way to add backing drums
• FM-X Synth Engine + AWM2
• 8 Simultaneous arpeggios with over 10,000 to choose from
• Up to 12 Dual insert effects simultaneous (+1 for A/D input)
• 2000+ preset performances
• SSS - Seamless Sound Switching for performances with up to 4 parts
• 7" Colour touch screen interface
• 1Gb Flash memory for sound expansion
• Great array of real-time controllers - 4 assignable rotary knobs, Super Knob, 2x assignable buttons, pitch and mod wheels

MODX8 Sound

The high quality sound source of the MODX8 synthesizer offers the largest pallet of sounds you could imagine. With dual sound engines, in-depth sound and editing capabilities and so much real-time control you can be sure to create the perfect sound.

FM-X produces classic ‘80s or cutting-edge, EDM synthesizer sound with incredible dynamic range, power and fidelity. MODX8 goes well beyond the capabilities of the original DX7 with an 8-Operator FM architecture,64-note polyphony, many Filter Types and more. It is even fully compatible with even the original DX files and users can use the free FM convertor on Yamahas' website to convert them to MODX format.

The AWM2 engine offers much more than just sample playback. Each of the 16 AWM2 Parts feature eight programmable synthesizers with a Filter (18 different Types!), Amplitude, Pitch and Filter Envelope Generators, nine LFOs, 3-band EQ and a dedicated Dual Insert Effect with Virtual Circuitry Modeling.

Ultimate In Real-Time Controllers

Super Knob is the mother of all controllers. It is capable of modifying up to 128 parameters at a single time. Each parameter is customisable to whatever feature you want it to control and each one can react differently with different rates, working in reverse etc. This is all stored with each single performance in the MODX8.

On top of this there is Motion Sequences and Envelope Follower features. Both of these offer different ways of controlling sound parameters either via custom controlled patterns, other sound parts as the control source or even using a live input source which is then converted to a controller signal - For example a bass drum to the A/D input could control a filter on one of the performance parts. The only real limitation with the sound capabilities of the MODX is your imagination!

Powerful Effects System

From high definition Reverbs to detailed Virtual Circuit Modeling (VCM) effects, MODX features DSP innovation, power and sound quality. Use effects like Beat Repeat, Vinyl Break, or Bit Crusher to get EDM sound. The Spiralizer effect creates the auditory illusion of a tone continuously rising or falling in pitch. You can even add a Compressor with Sidechain for a modern "ducking" effect. Or go retro with vintage effects like Analog Delay, VCM Phaser, or a variety of Amp Simulators. Piano players will appreciate piano-focused effects like Damper Resonance for a super-realistic piano experience and the HD Reverbs that let you put yourself in any performance space.

Record And Playback Audio/ MIDI

Capture your performance instantly using the built in direct performance record function. Simply press Record and capture everything that is going on with your creation including any controller movements and parameter changes. This can easily be saved as a MIDI file and then imported into your favourite DAW where youc an split the MIDI channels to independent tracks. If you wish to you can even record your performance as an audio file for direct playback on any audio device.

A direct USB audio playback feature means you can easily perform along with acapellas or backing tacks instantly. No need to load files, simply go to the song mode, choose the audio playback feature and select the file to play with. Simple, creative and makes playing more fun and indulging.
