Same Range
Yamaha Stagepas 100 Ultra-Portable Pa system
£279.00 RRP £379
1 In Stock
Other Options
£339.00
Yamaha Stagepas 100 BTR Battery Powered Ultra-Portable Pa system--Available Now--
| info | specs | videos |
|---|

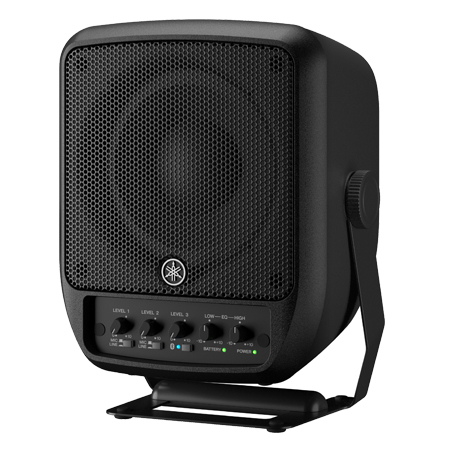

Yamaha Stagepas 100 Ultra-Portable PA System
The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability and allows you to turn any location into your live stage within seconds. The STAGEPAS 100 brings all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg and takes portability to a whole new level. Equipped with a 3 channel mixer, bluetooth and an incredible 120dB SPL it has everything the musician needs for performances, busking and more.
Stagepas 100 Main Features:
- Coaxial driver (6.5"+1.4")
- 100W Class-D Amplification
- 120 dB SPL
- 3-CH MIXER (2 Combo/1 Stereo Mini)
- Bluetooth audio (A2DP)
- Rugged cabinet, ultra portable
- Optional carrying bag
Stagepas 100 - Big Sound - Ultra-Compact Design
The compact STAGEPAS 100 delivers impressive audio performance by leveraging some of the same technologies used in Yamahs high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha's FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.
Stagepas 100 - Always Ready To Go
With an unrivaled ease of operation and a setup requiring mere seconds, the Stagepas 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
Mount On a Mic stand or Angle On The Floor
The Stagepas 100 has multiple positional options. Its frame allows it to sit on a surface such as the floor or a stage and be positioned at different angles, whilst the handle also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.
Yamaha Stagepas 100 Specifications
Mixer Section
- Inputs: INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line, Hi-Z), INPUT 3: Stereo Mini x 1 (line)
- Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix)
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Processors: 2 Band EQ
General Specification
- Speaker Type: Coaxcial speaker with compression driver
- Frequency range (-10dB): 70 Hz - 20 kHz
- Coverage area: H 90" x V 90"
- Crossover: 1.8 kHz (FIR-X)
- Maximum output level (1m; on axis): 120 dB SPL *1
- Speaker LF Driver: 6.5" Cone, 1.7" voice coil
- Speaker HF Driver: 1" throat compression driver, 1.4" voice coil
- Power Rating (Dynamic): 100 W (LF: 93 W, HF: 7 W)
- Cooling: Natural Convection (No Fan)
- Power Consumption: 10 W (Idle), 30 W (1/8 power)
- Cabinet: Plastic (PP)
- Handle: Bottom x 1 (Rotatable
- Mounting Hardware: 1 3/8", depth 12 mm (center of handle)
- Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
- Weight: 5.2 kg (11.5 lbs), without AC adaptor
- INcluded Accessories: Power cord x 1, AC adaptor (PA-500) x 1
Yamaha Stagepas 100 Overview Video
