    Current Model

      Yamaha DZR12 White PA System With DXS18XLF White Subwoofer Ex-Demo
      This instrument is discontinued

      We do not have this model available as ex demo / refurb at the moment

      Please feel free to call us so we can advise if we are expecting a shipment

      New version is here - Click

      Other Options

      infospecsvideos

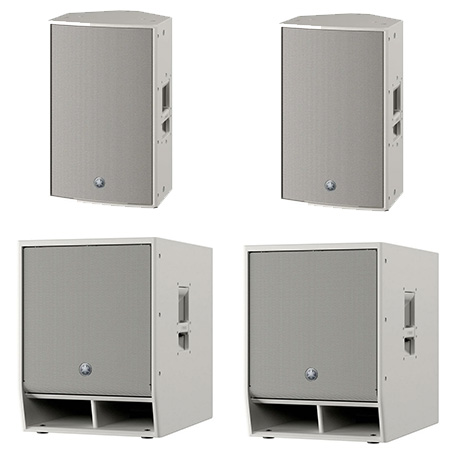

      DZR12 White and DXS18XLF White 7K Amplification Setup - Ex-Demo

      This powerful and stunning quality, white Yamaha amplification system saves a huge amount of money over the new equivalent and is in as new condition with full manufacture warranty. Comprising of 2x 200w each DZR12 speakers and 2x 1600w DXS18XLF subwoofers all in white offering un-matched sound quality and stand-out looks. This system offers over 7000w of pure sound heaven. It is perfect for large bands, wedding venues, pubs/ clubs and more.

      Yamaha DZR12 12" Speaker Technical Details

    • Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
    • Frequency range (-10dB): 39Hz - 20kHz
    • Coverage area: H90ﾟ x V60ﾟ (Rotatable)

      • Components

    • LF Transducer: 12" Cone, 3" Voice Coil, Neodymium magnet
    • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet


    • Crossover: 1.8kHz (FIR-X)
    • Internal Sampling frequency rate: 96kHz and FIR Filter
    • A/D D/A Converters: 96kHz AD/DA
    • Maximum output level (1m on axis): 39dB SPL *1

      • Power rating

    • Dynamic: 2000W (LF:1000W, MF/HF: 1000W) *2
    • Continuous: 1300W (LF: 920W, MF/HF: 380W)

      • I/O Connectors

    • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k Ohms , Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC: IEC AC inlet x1 (V-Lock)


    • Amplifier Class: Class-D
    • Cooling: Fan cooling, Variable speeds
    • Power Consumption: 45W (Idle), 150W (1/8)
    • Handle: Aluminium die-cast, Side x2
    • Rigging: M10 x12

      • Dimensions

    • Width: 410 mm (16.1")
    • Height: 646 mm (25.4") (with rubber feet)
    • Depth: 394 mm (15.5")


      • Weight

    • Weight Including Box - 28KG


    • Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
    • Others: USB 2.0 Host 5V 500mA for USB memory DATA storage/load
    • Floor Monitor Angle: 50 Symmetrical
    • Pole Socket: 35 mm x2 (0 or -7)

      • DXS18XLF Subwoofer Specifications

      • Equipped with: 18" With 4" coil
      • Maximum level: 136 dB
      • Frequency range: 30 - 150 Hz
      • High-performance 1,600 W Class-D amplifier module
      • 96 kHz DSP for true hi-resolution sound with extremely low latency
      • Access many DSP functions and presets
      • Alternatively, precisely adjusting the PEQ, delay and routing, etc. are possible via the intuitive LCD display
      • Equipped with D-XSUB processing and cardioid mode compatibility
      • Lightweight but durable wooden case with premium polyurea coating
      • Dimensions (W x H x D): 550 x 657 (with rubber feet) x 720 mm
      • Weight: 48.9 kg

      Yamaha DZR speaker Systems Video
