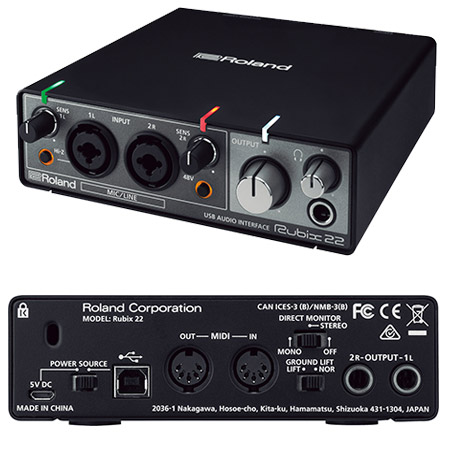

Roland Rubix 22 - High Quality USB Audio Interface
Compact, robust and ready to take any instrument or mic for high quality recording straight to your DAW. The Rubix 22 offers high quality audio recording of up to 24bit/ 192kHz which means superb detail and fidelity along with extremely low noise. With a single USB cable it will work seamlessly with mac or PC and even has support for iPad.
Rubix 22 Main Features
- 2-in/2-out USB audio interface
- 2 low-noise mic preamps with XLR combo jacks
- Hi-Z input for guitar and other high impedance sources
- MIDI In/Out ports
- Extensively shielded, low-noise design
- Sturdy and compact metal construction
- Big, easy-to-read indicators show vital information
- Low latency, class compliant drivers
- Ground lifts for quiet operation in a variety of venues
- Includes six months of Roland Cloud Pro membership
Multi-system Compatible - Mac/ PC/ iPad
Rubix22 comes complete with low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes six months free of Roland Cloud Pro membership with full access to Zenbeats multi-platform music creation app, software synthesizers like ZENOLOGY Pro, TR-808, and D-50, and much more.
2x Input for Mics, Line Instruments and Guitars
The Rubix 22 is equipped with 2 front panel mounted inputs for use with almost every instrument. Microphones, digital keyboards and pianos, guitars or anythign else you can think of with a line output. There is an independent gain for each input with signal level indicators to ensure you get the optimum gain on the input.
Roland Rubix 22 Specification
System
- Number of Audio Record/Playback Channels:
Record: 2 channels Playback: 2 channels - Signal Processing:
PC interface: 24 bits
AD/DA conversion: 24 bits - Sampling Frequency: AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
- Interface: Hi-Speed USB + MIDI IN, OUT
- Connectors:
INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedance - Controllers:
SENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switch - Indicator:
Level indicators (1L, 2R
POWER indicator
Hi-Z indicator
48V indicator
Characteristics
- Nominal Input Level:
INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu - Maximum Input Level:
INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu - Nominal Output Level: OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)
- Maximum Output Level: OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)
- PHONES Maximum Output Power: 20 mW + 20 mW (L + R, 47 ohms load)
- Headroom: 14 dB
- Input Impedance:
INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on - Output Impedance:
OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms - Residual Noise Level:
INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.) - Dynamic Range:
AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.
