        Roland EC-10M El Cajon Mic Processor

        £206.00 RRP £265

        1 In Stock


        Roland EC-10M ELCajon Mic Processor

        Enhance Your Sound and Add New Expression to Your Acoustic Cajon Performances


        The EC-10M ELCajon Mic Processor is a totally unique and innovative creative tool designed for the acoustic cajon. Compact and battery powered, the EC-10M picks up the cajon's acoustic sound with the included clip-on condenser mic, which is also used to trigger a variety of onboard tones for layering with the acoustic voice. You can then send both sounds to an amp or PA, giving you complete control over your stage sound. It's also possible to create percussion phrases with a built-in looper, and play additional sounds via integrated A/B foot pads or optional kick trigger pedals. Everywhere you play, the EC-10M transforms the acoustic cajon experience with a world of new expressive power.


        A unique and innovative creative tool for acoustic cajon players.

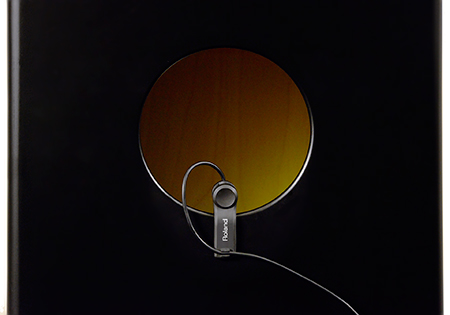

        • Easy setup - simply attach the included clip-on condenser mic to the sound hole of the acoustic cajon and start playing
        • Amplify the acoustic cajon - the EC-10M can be used as a mic preamp for the supplied microphone
        • A variety of sounds - 16 onboard kits with tones including tambourine, shaker, djembe, electronic drums, and more can be layered with the acoustic cajon
        • Multiple tones - play two different electronic sounds by slapping the edge or head of the acoustic cajon
        • Add pedals - up to two kick trigger pedals (Roland KT-10, KT-9, or KD-7) can be connected to play additional sounds; integrated A/B foot pads can also trigger sounds
        • Create loops and play along - a simple looper function allows recording of rhythm phrases using the onboard sounds
        • Versatile outputs - send the microphone and layered sounds to a PA mixer via two independent outputs, or mix all sounds to one mono output
        • Two-way power - can be used with four AAA-size batteries (for up to five hours of use*) or included power supply

        *Maximum use time will vary depending on the battery specifications, capacity, and conditions of use.


        With the EC-10M, it's easy to take your acoustic cajon performances to new heights. Just attach the dedicated clip-on mic to the instrument's sound hole, and then layer EC-10M tones with the acoustic voice to create unique hybrid sounds. The 16 kit variations include percussion sounds such as tambourine, surdo, splash cymbal, and many others, plus acoustic snare drum and the famous TR-808 snare. Built-in cajon tones with ambience are also included for reinforcing your acoustic cajon's natural voice with powerful studio sound.


        The EC-10M intelligently senses when the mic is picking up sounds from the head and edge surfaces on the cajon, giving you the ability to trigger distinctly different electronic sounds with each of these areas. This lets you integrate EC-10M sounds using authentic cajon techniques, so you don't have to adjust your playing in any way.

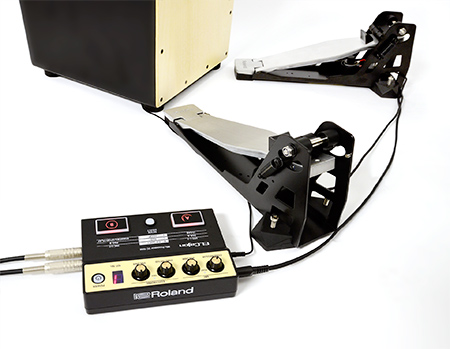

        In addition to head and edge sounds, each of the 16 kits within the EC-10M includes two electronic sounds that are pre-assigned to the onboard A/B foot pads for triggering with toe taps while performing. If you'd prefer to play these sounds with authentic foot techniques and a more solid feel, up to two Roland kick trigger pedals (KT-10, KT-9, or KD-7) can be connected.*
        *A splitter cable (such as the optional PCS-31L) is required to connect two kick trigger pedals to the EC-10M.


        You can use the compact EC-10M anywhere, since it weighs just 500 g/1.1 lbs. and runs on four AAA batteries. The included clip-on condenser mic is compact and convenient, eliminating the need to take up valuable stage space with a mic stand and large microphone. With its small footprint, the EC-10M is an easy fit in the tightest performing spaces.


        Along with being a sound module for electronic sounds, the EC-10M also functions as a mic preamp for the clip-on mic, enabling you to amplify both the acoustic cajon and layered sounds through an amp or PA. You can send the sounds to two independent outputs, or mix them together to one. With the EC-10M, it's simple to achieve a powerful, consistent cajon sound at every gig, from intimate street performances to the biggest concert stages.


        The EC-10M includes a built-in looper* for the electronic layered sounds. This lets you create instant percussive backing for acoustic cajon playing or jamming with another instrument. The looper is controlled using the A/B foot pads, and you can capture electronic sounds triggered from the cajon and external pedals in your loops. And by changing the kits while the loop is playing, the tones in the loop are changed too. With this cool creative option, your acoustic cajon performances will be transformed forever!
        *Recorded phrases cannot be saved.

        Roland EC-10M: ELCajon Mic Processor Specifications

        Sound Kit Variation

        • 16

        Layered Sound Contents

        • 2 (High, Low)

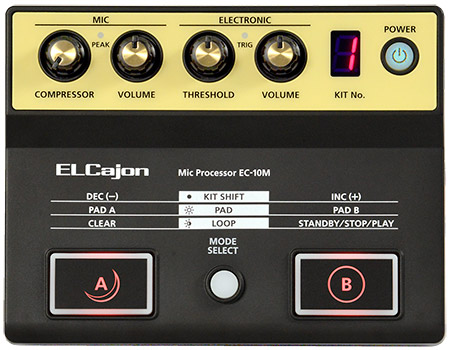

        Top Panel

        • POWER switch
        • (MIC) COMPRESSOR knob
        • (MIC) VOLUME knob
        • (ELECTRONIC) VOLUME knob

        MODE SELECT button

        • A button
        • B button

        Left Side

        • MIC GAIN knob
        • ENHANCE switch


        • KIT Number


        • TRIGGER INPUT jack: 1/4-inch TRS phone type
        • MIC INPUT jack: Stereo miniature type (Use included clip mic only)
        • MIC/MIX OUTPUT jack (MONO): 1/4-inch phone type
        • ELECTRONIC OUTPUT jack (MONO): 1/4-inch phone type
        • DC IN jack

        Power Supply

        • AC adaptor (DC5.7V)
        • Rechargeable Ni-MH battery (AAA, HR03) x 4

        Current Draw

        • 150 mA

        Expected battery life under continuous use

        • Approx. 5 hours.

        *These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.


        • 175 (W) x 135 (D) x 55 (H) mm
        • 6-15/16 (W) x 5-3/8 (D) x 2-3/16 (H) inches


        • 500 g
        • 1 lb 2 oz


        • Clip Mic
        • Owner's manual
        • Leaflet "USING THE UNIT SAFELY"
        • AC adaptor

        Options (sold separately)

        • Kicks: KD-7, KT-9, KT-10
        • Stereo Split Cable: PCS-31L

        Roland EC-10M ELCajon Mic Processor

        Create percussion loops with the EC-10M ElCajon

        Customise the EC-10M ElCajon for your playing style

        Play extra sounds with an acoustic cajon and the EC-10M ElCajon
