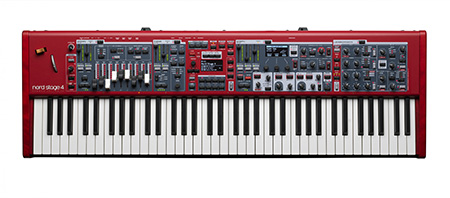

Nord Stage 4 73 - Portable Stage Piano
The Nord Stage 4 73 is the ultimate in truly portable stage piano technology. The famous Nord sound quality has been further improved and now features a brand new panel design, triple sensor keybed, complete effects section for each layer, physical drawbar controllers, layer scene feature and much much more.
Nord On Stage - Enhanced Controls and New Features
The Nord Stage 4 has been designed with an all new panel that features better indicators of values, more hands on controls and enhanced performance features. Features include:
- strip LED faders for each layer, this provides exceptional overview and flexibility when crafting sounds and also aids live performance.
- Physical Drawbar controllers offering much better control on stage for speed and interaction. Each fader has its own LED indicator.
- Layer Scene lets you seamlessly switch from two different sound setups at the touch of a button
- Nord Wave 2 synth section with triple synth layers. With more hands-on controls and double the previous memory now offering 1Gb dedicated memory
- New effects section offering dedicated effects for each layer with added new effects
- New library section allows you to look through entire sets for the Nord, or, individual library patches for each section of the instrument- far easier to find great presets and make your own combinations.
- New triple pedal functionality allowing control of more functions making your performance much easier on stage
New Piano Sounds
The Nord Stage 4 comes with a new and enhanced collection of Grands, Uprights and electric pianos from the Nord Piano Library combined with all new features such as Dynamic Compression and Unison.
- Enhanced collection of Uprights, Grands, EPs and more
- Dynamic Compression
- Unison feature
- Creative Timbre presets
Enhanced Synth Section
The Synth Section has three independent layers and is based on the powerful Nord Wave 2 synth engine, including Virtual Analog synthesis, Samples, FM and digital waves. The Nord sample library has provided an extensive collection of samples and sounds to offer a broad sonic palette of strings, bass, choirs, guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and pattern modes and can be used for a huge amount of rhythmic applications with customisable patterns- Nord Wave 2 Synth Engine
- 3 independent Synth Layers
- Doubled sample memory
- Enhanced samples with Tru-Vibrato, Unison and Round Robin
- Extensive real time controls
- Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
- Extern mode for advanced MIDI control
Improved Organ Section
Nord stage 4 is now equipped with enhanced physical drawbar controllers with LED indicators. The physical controllers offer much better speed, and accessibility to operate drawbars live. Of course it is packed with some of the worlds best organ tones such as the award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models.
- Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
- Physical drawbars with LED indicators
- Drawbar Live mode
- New B3 Bass mode
- Model 122 Vintage Rotary Speaker with normal or close mic positions
Huge Effects Capability
Nord Stage 4 73 has a brand new effects section offering a complete setup of effects for each layer. The extensive range of Effects includes a new Pump effect for side chain simulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.
The Effect Section Highlights
- Dedicated Effect section per Layer
- New Variations for Modulation, Amp, Delay and Reverb Effects
- New Spring, Booth and Cathedral Reverb
- New Spin effect
- New Pump effect
- New Flam and Space Delay
Nord Stage 4 73 - Specifications
General
- Master Level Control
- Wooden Pitch Stick
- Modulation Wheel
- 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
- Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
- 8 Live Programs
- 2 Individual Layer Scene Setups
- 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
- Stereo and Mono output routing options
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off
Organ Section
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- B3 Bass mode
- Physical Drawbars with LED graphs
- Preset or Drawbar Live mode
- Percussion controls
- Vibrato / Chorus control
- 2 Layers (2-Part Multitimbral)
Piano Section
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
- Piano Timbre controls with custom settings for Electric Pianos and Clavinet
- String Resonance for acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
- Dynamic Compression
- Unison functionality
- 2 Layers (2-Part Multitimbral)
Synth Section
- Nord Wave 2 Synth Engine with Sample Playback
- Dedicated OLED Display for Waveform/Sample selection and parameter editing
- 1 GB Memory for Nord Sample Library
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 46 Voice polyphony
- Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
- Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
- Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
- Filter envelope (Attack, Decay, Sustain) with Velocity control
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Oscillator envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- Advanced Arpeggiator with Arp, Polyphonic and Gate modes
- Arpeggiator Patterns for all modes, with Accent and Pan options
- LFO and Arpeggiator synchronizable to Master Clock
- 3 Layers (3-Part Multitimbral)
Effects
- Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
- Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
- Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
- 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
- Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
- Tube amp simulation with adjustable overdrive
- 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
- Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
- Effect rates/tempo can be synchronized to the Master Clock
- Compressor with Fast Mode
- Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
Keyboard Action
- 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E
Connections
- 4 Assignable Audio Outputs - ", 6,35 mm jacks, unbalanced
- Stereo Headphone output - ", 6,35 mm stereo jack
- 1 Monitor input - 1/8", 3,5 mm stereo jack
- Sustain Pedal - ", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
- Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2
- Rotor Pedal - ", 6,35 mm jack. Use a momentary pedal or a switch type pedal
- Organ Swell Pedal - ", 6,35 mm TRS stereo jack
- Control Pedal - ", 6,35 mm TRS stereo jack
- Foot Switch input - ", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal
- MIDI In - 5 pin DIN connectors
- MIDI Out - 5 pin DIN connectors
- USB - type B connector for USB MIDI, Software Update and Sound Transfer
- Power Cord with IEC C14 connector
Dimensions & Weight
- Dimensions: 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")
- Weight: 16.7 kg (36.8 lb)
