Current Model
Nord ELECTRO 5D 61 - USED£1498.98

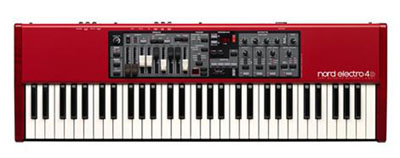

Nord ELECTRO 4 D 61
This instrument is discontinued
Other Options
| info | specs | reviews |
|---|
The Nord Electro 4D adds a fresh take on the popular Electro 3 keyboard. New organ sound engine with enhanced drawbar control, long Release suitable for legato playing and selectable String Resonance on pianos plus many other new features.
Nord have update the Electro range with the new Nord Electro 4D, 61 key portable stage keyboard. Staying in touch with its renowned heritage Nords red chassis and incredible sound quality remains in tact with improvements and new add-ons making the Electro 4D the perfect gigging machine.
Hammer Action Portable (HP)
The HP keybed uses amazingly portable weighted hammer action piano keys. Perfect for electric and acoustic piano sounds, but also works great for organ playing.
Key range E-E.
This keybed type uses semi weighted organ type keys with a rounded "waterfall" tip, brilliant for rapid organ shredding and synthesizer licks, but also plays nice with piano sounds.
Key range C-C on Electro 4D SW61 and F-F on Electro 4 SW73.
Each Fatar keybed is meticulously calibrated at the Nord factory to ensure an even response over the whole range.
Nord have added many features to the Electro 4D. First and foremost the sound generation has been upgraded to use the same processing as the new Nord C2D drawbar organ. Nord have even added new physical drawbars to the top panel of the Nord Electro 4D to enhance and bring back that real feel of drawbars from back in the day. To top off the new organ sounds Nor have improved the Click-modeling and there's a brand new Rotary Speaker simulation with a new Drive.
The Nord Electro 4D now has Long Release suitable for legato playing and selectable String Resonance for the pianos bringing them up to date with the latest Nord Piano technology. Handling and selecting programs live has been improved with 4 Program Banks and 4 Live Locations.
Of course the Effect section has been updated now includes a flexible new Delay Effect with tap-tempo, rate, amount and a stereo Ping-Pong mode.
The Nord Electro 4D has kept the waterfall style keyboard, perfect for gliss style organ playing and slides. This semi-weighted keyboard can now be used as a great feel input controller for your DAW as the USB port now doubles as an USB-MIDI interfaceNord Electro 4 Specification
Global features
- Nord Electro 4D SW61: 61-key (5 octaves, C-C) Velocity sensitive Semi Weighted Waterfall keyboard
- Nord Electro 4 SW73: 73-key (6 octaves, F-F) Velocity sensitive Semi Weighted Waterfall keyboard
- Nord Electro 4 HP: 73-key (6 octaves, E-E) Velocity sensitive Hammer Action Portable keyboard
PIANO AND SAMPLE LIBRARY SECTION
Memory Nord Electro 4D SW61
- 185 MB memory dedicated to the Nord Piano Library
- 68 MB memory dedicated to the Nord Sample Library
Memory Nord Electro 4 SW73/HP
- 380 MB memory dedicated to the Nord Piano Library
- 128 MB memory dedicated to the Nord Sample Library
- The Piano Section has 5 categories - Grand, Upright, EPiano 1 (tine), Epiano 2 (reed) & Clav/Harpsichord.
Each category can contain several different models. - All pianos and samples can be replaced using the Nord Sound Manager application
- String Resonance-control (Gen 1)
- Long Release
- The Sample Library section can contain up to 50 samples from the Nord Sample Library
- Stereo pianos and samples can be played back in mono
- 40-60 Voices polyphony for Piano Library sounds. 15 Voices for Sample Library sounds.
ORGAN SECTION
- Three classic organ models: B3, Vox Continental, and Farfisa with full polyphony
- B3 Tone Wheel Organ engine from Nord C2D Combo Organ
- Two complete organ registrations for every program
- Percussion with 2nd, 3rd, normal/soft, fast/slow for the B3 model
- User adjustable percussion levels, percussion decays and key click level
- Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
- 4 Tonewheel modes: select the level of "vintage" desired
- MIDI Split: By connecting an extra MIDI keyboard the Nord Electro 4 can be used as a dual manual (Lower/Upper) organ with different drawbar settings for each manual
- Nord Electro 4D: 9 physical drawbars
- Nord Electro 4 SW73/HP: Digital LED drawbars
EFFECTS SECTION
- Effect 1 - pan, tremolo, auto-wah, pedal-wah and ring modulator
- Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
- Control pedal assigned to pedal-wah and ring modulator depth
- Effect 2 - phaser, flanger and chorus
- Three selectable depths, rate controlled with the Effect 2 Rate knob
- Comp/Amp - three amp/speaker simulations, compressor and rotary speaker
- Drive/Compression amount controlled with the Drive knob
- Rotary speed controls - Slow, Fast and Stopped
- Close or Normal microphone placement for 122 Rotary Speaker simulation
- User adjustable rotary treble and bass rotor speeds and acceleration rates
- Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
- Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong
- Reverb with five algorithms - Room, Stage Soft, Stage, Hall, Hall Soft
- Dry/Wet control
CONNECTIONS
- 2 Audio outputs L & R - ", 6,35 mm jacks, unbalanced
- 1 Monitor input - 1/8", 3,5 mm stereo jack
- 1 Headphone output - ", 6,35 mm stereo jack
- 1 Control pedal input - ", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
- 1 Sustain pedal input - ", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
- 1 Rotary Speaker speed switch pedal input - ", 6,35 mm jack. Use a momentary pedal or a switch type pedal
- MIDI In, MIDI Out - 5 pin DIN connectors
- USB - type B connector - for transferring sounds and USB MIDI
- IEC C14 power connector
INCLUDED ACCESSORIES
- User Manual
- Power cord
- Nord Piano and Sample Library DVDs.
DIMENSIONS
- Nord Electro 4D SW61: 900 mm (35.4") x 100 mm (3.9") x 300 mm (11.8")
- Nord Electro 4 SW73: 1120 mm (44.1"), 100 mm (3.9"), 300 mm (11.8")
- Nord Electro 4 HP: 1078 mm (42.4"), 121 mm (4.8"), 344 mm (13.5")
WEIGHT
- Nord Electro 4D SW61: 7.65 kg (15.3 lbs)
- Nord Electro 4 SW73: 9.1 kg (18.2 lbs)
- Nord Electro 4 HP: 11 kg (24.25 lbs)
