Current Model

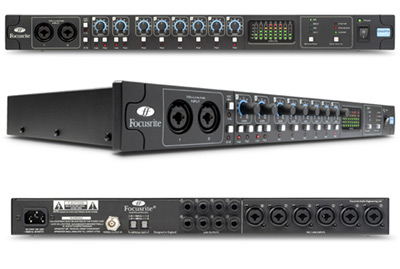

Focusrite Octopre MKII
This instrument is discontinued
Other Options
| info | specs |
|---|
Expand your recording potential and improve your sound quality with the Focusrite Octopre MKII. 8 Channels of award winning mic preamps in a single rack mount unit making the Octopre MKII the ideal multi-channel recording add-on for any Focusrite interface.
Each channel of the Octopre MKII has a gain control knob on the front fascia for fast and convenient input level control. There is also a 5 level LED monitor which shows the input level of every channel simultaneously for optimising your recording levels.
The Octopre MKII has been fitted with a 10db pad switch on each and every channel to helps prevent hot signals from overdriving the preamp. This simple solution makes the Octopre MKII perfect for recording drums live where unexpected high input levels will not destroy your recording quality.
Focusrite have been kind enough to fit a direct output connection on each channel of the Octopre MKII. This means not only can you record audio direct into your DAW through the ADAT connection but each channel of audio can also be routed to another device for external processing, recording or your mixer for live performance.
The Octopre MKII has 2x ADAT Lightpipe (TOSLINK) outputs. This provides 8 channels per port (16 total) at 44.1 and 48kHz. Provide 4 channels per port (8 total) at 88.2 and 96kHz (S-MUX).
OctopreTechnical Specifications:
- Frequency Response: 20Hz - 20kHz +/- 0.1 dB
- THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
- Noise: EIN > 125dB (128dB analogue to digital): measured at ~60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter).
- Mic Gain: +10dB to + 55 dB
- Input Pad: ~-10 dB
- Phantom power switched in 2 x 4 channel groups (1-4 and 5-8)
- Maximum input level: +8 dBu (+17 dBu with pad on input)
Mic Input
Line Input
- Frequency Response: 20Hz - 20kHz +/- 0.1dB.
- THD+N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter).
- Noise: -90dBu (22Hz/22kHz bandpass filter).
- Line 1-8 Gain: -10 dB to +36 dB
- Line maximum input level: +22 dBu
Instrument Input
- Frequency Response: 20Hz - 20kHz +/- 0.1dB.
- THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter).
- Noise: -87dBu (20Hz/22kHz bandpass filter).
- Instrument Gain: +10 dB to +55 dB
- Maximum input level: +8 dBu
Analogue Output
- Frequency Response: 20Hz - 20kHz +/- 0.2dB.
- THD+N < 0.0010% (-100dB) (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted).
- Nominal output level @ 0dBFS: 16 dBu, balanced
Digital
- A/D Dynamic Range 110dB 'A-weighted' (all inputs).
- JetPLL Technology providing superb jitter reduction for class leading converter performance.
- Clock Jitter < 250 pico seconds.
- Sample Rate Clock Accuracy: +/- 20PPM.
- Sample rates: 44.1kHz to 96kHz.
- Clock Sources: Internal and Word Clock.
Weight
- 3.6 kg / 7.93 lbs
Dimensions
- W = 484mm / 19", H = 45mm / 1.8", D = 265mm / 10.4"
