Current Model
Focusrite iTrack Dock
This instrument is discontinued
Other Options
| info | specs |
|---|

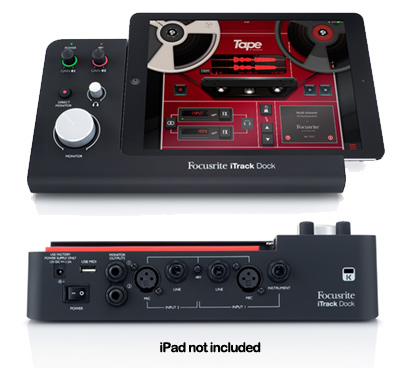

iTrack Dock is a comprehensive yet easy-to-use, studio-quality iPad recording interface that acts as the hub of your Lightning iPad recording studio. Featuring two legendary Focusrite microphone preamps, along with two line inputs and an instrument DI with plenty of extra headroom, stereo monitor outputs with 105dB dynamic range plus independently-controlled headphone outputs, and a USB port for class compliant MIDI instruments and controllers, iTrack Dock gives you everything you need to record, monitor and control music on your iPad (not included) - with precision Focusrite digital conversion at up to 24-bit, 96kHz sampling. And at the same time it charges and powers your iPad.
With two Focusrite preamps, main and monitor outputs with 105dB dynamic range, and all controls on the easily-accessed, angled front panel next to the iPad, iTrack Dock brings powerful, professional audio to any Core Audio app including GarageBand, Auria, Cubasis and Focusrite's Tape app, which is included in the box.
Compatible with any Lightning-equipped iPad and instrument, microphone, class-compliant MIDI controller or audio device, iTrack Dock allows you to capture music in pristine 24-bit 96kHz resolution. iTrack Dock powers and charges the iPad, and powers a USB MIDI device - such as a Novation Launchkey or Launchkey Mini keyboard controller - all at the same time. Plug and power a class-compliant USB MIDI controller directly into iTrack Dock - there's no need for USB hubs or camera connection kits.
iTrack Dock features easy-to-reach, dedicated monitor and headphone controls. Input level controls incorporate Focusrite's unique "Gain Halos", for accurate instrument and microphone level monitoring. Latency-free direct monitoring is also provided.
iTrack Dock is an Apple-compliant audio docking interface with Apple-certified "Made for iPad" status. Compliant with any Lightning iPad - iPad 4th Generation, iPad Air, iPad mini and iPad mini with retina display - iTrack Dock's sleek, modular design allows you to slide the Lightning connector up and down to accommodate any sized iPad.
Analogue Input Performance - Mic
- Frequency Response: 20Hz - 20kHz +/- 0.2 dB (minimum gain)
- THD+N: < -99dB (minimum gain, -1dBFS input with 20Hz/20kHz bandpass filter)
- Equivalent Input Noise (EIN): < -125dBu CCIR-RMS (measured at maximum gain with 150 ohm termination)
- Gain Range: -4dB to +46dB (dBFS / dBu) 1dB
- Max Input Level: >+4dBu (at 1% THD)
Analogue Input Performance - Line
- Frequency Response: 20Hz - 20kHz +/- 0.2dB (minimum gain)
- THD+N: < -98dB (min gain, -1dBFS at output and 20Hz/20kHz bandpass filter)
- Noise (NiPoS): <-104 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination)
- Gain Range: -22dB to +28dB (dBFS / dBu) 1dB
- Max Input Level: >+21dBu (at 1% THD)
Analogue Input Performance - Instrument
- Frequency Response: 20Hz - 20kHz +/- 0.2dB (minimum gain)
- THD+N :<-90dB (min gain, measured at Max Input Level -1dB, 20Hz/20kHz bandpass filter)
- Noise: <-104dBu CCIR-RMS (measured at min. gain)
- Gain Range: -16dB to +34dB (dBFS / dBu) 1dB
- Max Input Level: >+14dBu (at 1% THD)
Analogue Output Performance
- Nominal Output Level: 0dBFS = >+10dBu, balanced, 0dBFS = >+4bBu, unbalanced
- Frequency Response: 20Hz - 20kHz +/- 0.2dB
- THD+N: < -100dB, balanced (0dBFS input 20Hz/20kHz bandpass filter)
Digital Performance
- Clock sources: Internal clock only
- D-A Dynamic Range: 105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
- Supported sample rates: 44.1 KHz, 48 KHz, 96 KHz 24 Bit
Input Metering
- Ring LED lit Green Signal present (-24 dBFS)
- Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second
Weight and Dimensions
- Height 64mm Width 280mm
- Depth 168 Weight 0.7 Kg
