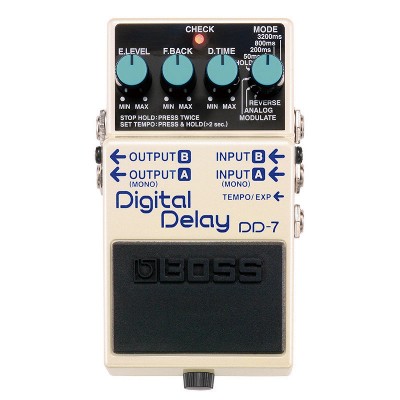

      Boss DD-7 Digital Delay Guitar Pedal

      £137.00 RRP £155

      Out of Stock

      Available to Order Estimated delivery Call 01772 722468

      The Boss DD-7 Digital Delay takes all the best features from its predecessors and expands the creative potential with Modulation Delay mode, classic modelled Analogue Delay mode, external pedal control options, longer delay time, and more!

      Up to 6.4 seconds of delay time is available on the DD-7, with a Hold mode allowing up to 40 seconds of input to be recorded for creating sound-on-sound performances.

      The Boss DD-7 is equipped with two innovative new delay modes. Modulation Delay provides chorus-flavoured sounds. Analogue Delay offers a modelled simulation of the classic Boss DM-2 pedal, beloved for its characteristic warmth.

      For hands-free control of the DD-7, an external footswitch and Expression pedal (sold separately) can be used. Tap tempo can be controlled from an external footswitch, while delay time, feedback, and effect level can be changed on the fly via Expression pedal.

      Create amazing effects with the Boss DD-7s stereo output, such as spatial audio sweeps via true stereo panning. You can also use the stereo outputs to create separate dry and wet signal paths - handy for recording and live-performance control.

      The Boss DD-7 Digital Delay Pedal Features:

      • Expanded delay time from its predecessor - up to 6.4 seconds
      • Modulation Delay mode offers natural, chorus-type sounds
      • Analogue Delay mode models the classic warm BOSS DM-2 analogue delay sound
      • Tap tempo controllable via external footswitch
      • Delay time, feedback, and effect level can be controlled via external Expression pedal (sold separately)
      • Up to 40 seconds of recording for sound on sound (Hold mode)
      Pedal switch
      CHECK (Used for indication of TEMPO, HOLD, and to check battery)
      INPUT-A (MONO) jack, INPUT-B jack
      OUTPUT-A (MONO) jack, OUTPUT-B jack
      TEMPO/EXP jack
      AC adaptor jack (DC 9 V)
      Delay Time
      1 ms to 6400 ms*
      Maximum recording time: 40 sec (in Hold mode)
      *Values may vary according to the mode and connections.
      Nominal Input Level
      -20 dBu
      Input Impedance
      1 M ohm
      Nominal Output Level
      -20 dBu
      Output Impedance
      1 k ohm
      Recommended Load Impedance
      10 ohms or greater
      Power Supply
      DC 9 V:
      Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline)
      AC Adaptor (PSA-series: optional)
      DC 9 V: Dry battery 6F22 (9 V) type (carbon)/
      Dry battery 6LR61 (9 V) type (alkaline),
      AC Adaptor (PSA-series: optional)
      Current Draw
      55 mA (DC 9 V)
      * Expected battery life under continuous use: Carbon: 1.5 hours, Alkaline: 6 hours. These figures will vary depending on the actual conditions of use.
      Owners Manual, Mode Sticker, Application Sticker, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V type, 6LR61) *1
      AC adaptor (PSA-series), Footswitch: FS-5U, Expression pedal: Roland EV-5
      Size and Weight
      73 mm
      2-7/8 inches
      129 mm
      5-1/8 inches
      59 mm
      2-3/8 inches
      0.4 kg
      1 lbs.
      * 0 dBu = 0.775 Vrms
      *1 The battery that is supplied with the unit is for temporary use, intended primarily for testing the units operation. We recommend that alkaline battery be used when replacing the battery.
      *The specifications are subject to change without notice.
