Current Model

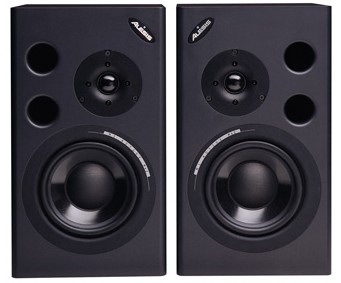

Alesis M1ActiveMKII
This instrument is discontinued
The Alesis M1 Mk2 Active Biamplified Reference Monitor offers the incredibly accurate response that perfectly translates to every playback system.The M1 active MK2 are the perfect monitors for dance music and home studio use. Outstanding clarity and quality from a nearfield monitor.
| info |
|---|
The Alesis M1 Active™ Biamplified Reference Monitor offers the incredibly accurate response that perfectly translates to every playback system. Its internal active crossover and custom-designed dual amplifiers ensure an extremely consistent performance under a variety of different studio conditions and program material.
The Alesis M1 MKII Active Monitor Features:
-
Ported Enclosure
-
6.5\" non-woven carbon filter woofer - Shielded 75w
-
1\" silk dome with medium viscosity ferrofluid coolant and dual magnet shielded configuration 25w
-
Active Bi-Amplifiers and Electronic Crossovers
The MKII active monitors are a collaboration of Alesis development and highest quality sound technology for your pleasure and use. Designed to make mixing a breeze and for overall accurate flat mixing the M1 active MKII monitors should be in your home/ studio setup.
Specifications:
- Low Frequency Driver: 6.5\" non-woven carbon fiber with Santoprene surround and dual magnet shielded configuration
- High Frequency Driver: 1\" silk dome with medium viscosity ferrofluid coolant and dual magnet shielded configuration
- Crossover: 1500Hz, 8th-order, 48dB/octave filters
- Input Impedance: 20k_ balanced, 10k_ unbalanced
- LF Filter: 2nd order, \"optimal Q\" high pass, +1dB boost@50Hz
- LF Amplifier: 75 watts, 8_ load
- LF Amp Distortion:less than 0.03% thd @ 30w
- lf amp slew rate: 19V/µsec
- LF Amp S/N Ratio: >110dB, ref. 60W @ 8_, A-wtg., 1kHz
- HF Amplifier: 25 watts, 4_ load
- HF Amp Distortion: less than 0.06% thd @ rated power
- lf amp slew rate less than 9V/µsec
- HF Amp S/N Ratio: >112dB @ rated output
- Frequency Range: 38 Hz - 23.5 kHz (-10dB point)
- Connectors: Combination XLR-1/4\" jack with input level control
- Dimensions: (WxHxD) 8.5\"x15\"x9.75\" (381mm x 216mm x 248mm)
- Weight: 19.5 lbs. (8.9kg) each.
