    Current Model

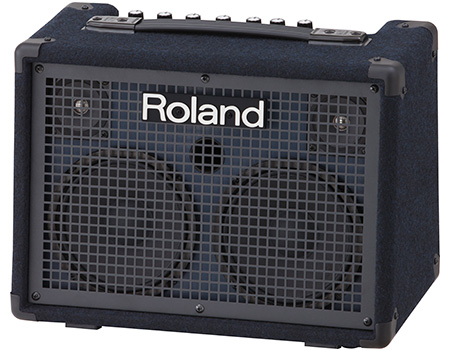

      Roland KC-220
      This instrument is discontinued

      Other Options

      infospecs

      Offering full-range stereo sound and battery-powered operation, the three-channel KC-220 is the ultimate mobile keyboard amp. It also excels as a mini PA, thanks to its built-in DSP effects, dedicated auxiliary input, and support for an XLR vocal mic. Delivering big sound in a super-portable package, the KC-220 is a must-have amp for rehearsals, street performances, and gigging on the go.

      Main Features

      • Battery-powered stereo keyboard amplifier
      • Highly efficient power section with 30 watts of power (15 watts x 2)
      • Two newly developed custom 6.5-inch woofers and two custom tweeters
      • Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
      • Built-in DSP effects: reverb and two chorus types
      • XLR mic input, mono/stereo line output, and headphones output
      • Metal jacks for increased durability
      • Runs on eight AA batteries or included AC adapter; removable cartridge for easy battery replacement
      • Built-in tilt-back stand and integrated mount for optional ST-A95 speaker stand

      Perfect Amp For Keyboards and Electronic Instruments

      The KC-220 delivers full-range stereo sound with 30 watts of power (15 watts x 2), two newly designed 6.5-inch speakers, and two custom tweeters. Paired with an advanced power section optimized for efficient battery operation, the KC-220 smoothly reproduces the wide frequency range of 88-note stage pianos, organs, and synthesizers, as well as rhythm machines and other electronic instruments.

      Onboard 3+1 Mixing

      Compact and convenient, the KC-220 is a complete stereo mixing system that travels everywhere you need to play. Three 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments, and Channel 1 also includes an XLR input for using a vocal mic. There's a dedicated aux channel as well, with 1/8-inch and RCA inputs for connecting smartphones, music players, and other devices.

      Stereo Effects and EQ

      It's easy to enhance your sound with the KC-220's high-quality DSP effects. Normal and wide stereo chorus effects are provided, plus a lush stereo reverb for vocals and instruments. And for hands-free operation on stage, effects on/off can be controlled with an optional footswitch. The KC-220 also includes high and low EQ for shaping the overall sound to suit the venue.

      Versatile Connectivity

      The KC-220 is equipped with mono/stereo line outputs, allowing you to interface with PA systems, stage monitors, or recording devices. Plugging into the Phones jack mutes the onboard speakers, perfect for private practice sessions and checking sounds on stage with headphones.

      Specifications

      • Rated Power Output:
        30 W (15 W + 15 W) (when using the AC adaptor)
        20 W (10 W + 10 W) (when using the Alkaline batteries)
      • Nominal Input Level (1 kHz)
        CH1 (BALANCED, MIC/LINE): -50- -20 dBu
        CH2 (LINE): -20 dBu
        CH3 (LINE): -20 dBu
        AUX IN (L, R, STEREO): -10 dBu
      • Nominal Output Level (1 kHz): LINE OUT: +4 dBu
      • Speakers: 16 cm (6.5 inches) Woofer x 2 / Tweeter x 2
      • Controls:
        POWER switch
        [CH1]: MIC/LINE knob
        [CH2]: LINE knob
        [CH3]: LINE knob
        [EFFECT]: EFFECT knob
        [EQUALIZER]: LOW knob, HIGH knob
        MASTER knob
        [AUX IN]: LEVEL knob
        Indicator: Power
      • Connectors
        CH1 (BALANCED) jack: XLR type
        CH1 (MIC/LINE) jack: 1/4-inch phone type
        CH2 (L/MONO, R) jack: 1/4-inch phone type
        CH3 (L/MONO, R) jack: 1/4-inch phone type
        AUX IN (L, R) jacks: RCA phono type
        AUX IN (STEREO) jack: Stereo miniature phone type
        LINE OUT (L/MONO, R) jack: 1/4-inch phone type
        PHONES jack: Stereo 1/4-inch phone type
        FOOT SW jack: 1/4-inch phone type
        DC IN jack
      • Current Draw: 550 mA
      • Expected battery life under continuous use:
        Alkaline battery: Approximately 7 hours
        Rechargeable Ni-MH battery: Approximately 8 hours
        * This can vary depending on the capacity of the batteries and the conditions of use.
      • Accessories:
        Owner's Manual
        AC Adaptor
        AC Cord
      • Options (sold separately):
        Speaker Stand (ST-A95)
        Footswitch (BOSS FS-5U)
      • Size and Weight:
        Width: 420 mm (16-9/16 inches)
        Depth 244 mm (9-5/8 inches)
        Height: 320 mm (12-5/8 inches)
        Weight: 7.3 kg (16 lbs 2 oz)
