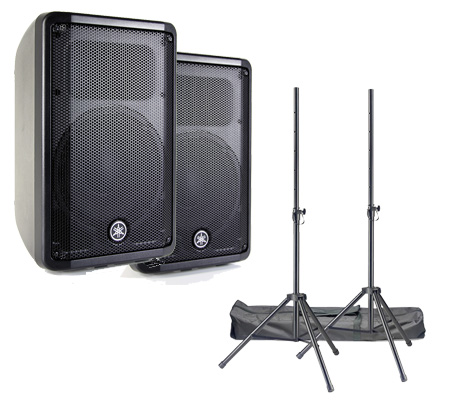

Yamaha DBR10 Speakers And Stands
Bundle currently not available. However Bundle componants may be in stock
Yamaha DBR10 speakers are compact, lightweight, powerfull and offer high quality sound. A built-in 700w amplifier offers plenty of power and houses multiple inputs. This is an ideal portable PA system.
Yamaha's DBR10 speakers make an ideal portable PA system where high quality audio and weight are important factors. They have a built in 700w amplifier, multiple inputs on the rear and lightweight cabinet design. Pubs, clubs and small venues are no problem for the DBR10 speaker system.
This speaker features the same state-of-the-art DSP technology found and inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. Yamahas innovative FIR-X tuning utilizes linear phase FIR filters for the crossover, achieving more accurate and smooth response for outstanding clarity and imaging, while D-CONTOUR dynamic multi-band processing applies optimized settings for either front-of-house or floor monitoring applications. The DBR10 also employs many of the same protection functions used in the top-class TXn Series professional power amplifiers, assuring reliable operation for extended durations of usage.
Built-In 700w Amplifier
Built-in class-D amplifiers deliver up to 700W of power, achieving an impressive maximum SPL of up to 132 dB with consistent sound quality and performance. The transducers were carefully selected and then thoroughly customized to perfectly match the amplifiers properties in order to deliver high output power with minimal distortion. The new lineup also features Yamahas extremely accurate wide dispersion constant-directivity horn that evenly projects the DBR10s deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area.
Rugged,compact and light-weight plastic enclosure, fitted with a sleek steel grille and ergonomic handles allowing for fast, safe and easy transportation and setup. The DBR10 also features an optimized 50° wedge angle for floor monitoring use. All models come equipped with rigging points compatible with optional speaker brackets and eyebolts for installed applications.
The DBR10 also features an easy-to-use 2-channel onboard mixer. CH1 has a combo jack that accepts both XLR and TRS Phone, allowing for either Mic or Line level inputs. CH2 also features a combo jack, as well as an RCA pin jack for input from CD players or stereo line-level sources. The mixer allows you to select either CH1+2 MIX, or CH1 THRU to pass the signal from CH1 only.
- Speaker type: 2 Way Bi-amplified
- Connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Output Power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- (W x H x D) 308mm (12.1\") x 493mm (19.4\") x 289mm (11.4\")
- Weight: 10.5Kg
