    Roland TD-50 V-Drum Prismatic Sound Modelling Module

    £2040.00 RRP £2465

    Out of Stock

    Available to Order Estimated delivery Call 01772 722468
    Free Mainland UK DeliveryNext working day on orders placed before 2pm
    Pay MonthlyPay up to 50% deposit - adjustable at checkout.
    Example deposit of £204.00...
    • 12 Months 15.9% APR - £165.58 P/M
    • 24 Months 15.9% APR - £88.88 P/M
    • 36 Months 15.9% APR - £63.50 P/M
    • 48 Months 15.9% APR - £50.95 P/M
    Click HERE for finance FAQ.

    Other Options

    infospecsvideos

    The All-New Roland TD-50 V-Drum Digital Upgrade Package

    V-Drums redefined; a drum sound module for pro performance and studio sessions

    As an ambitious pro drummer, you know that anything less than the ultimate sound and feel will hold you back. Introducing the new Roland TD-50 drum sound module: the flagship release in the acclaimed V-Drums range, created for top-flight live performance, intense practice sessions and eclectic studio work. Our new TD-50 module with Prismatic Sound Modeling delivers Roland's most impressive and wide-ranging sounds yet. The advanced processor is complemented by 3 digital pad inputs for connection to a new PD-140DS snare and CY-18DR ride cymbal with multi-element sensor system. Meanwhile, deep editing features and flexible connectivity put you in charge. The Roland V-Drums TD-50 sound module is the pro's choice.

    Flagship electronic sound module with ultimate expression
    400+ dynamic and expressive instruments in high-quality audio

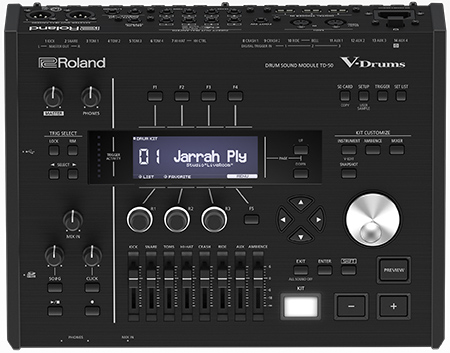

    New TD-50 sound module with Prismatic Sound Modeling
    Digital Pad inputs (USB) x 3 for new 14" Digital Snare (PD-140DS) and 18" Digital Ride (CY-18DR) multi-sensor system
    Play your own WAV samples via SD card
    USB 10-channel Out/4-channel In for multi-track recording through a single USB cable
    Master Output (XLR) and 8 Direct Out (TRS), balanced for PA connection
    Metronome with Quiet Count and audio playback function for practice
    Audio record function to capture and export drumming performances
    Advanced V-Edit system to customize drum and cymbal sounds

    The Artist Collection V2

    Roland TD-50 - THE ARTIST COLLECTION UNIQUE SD CARD

    The Artist Collection V2 is A&C Hamilton's exclusive creation of custom Artist and Song specific drum patches for use with the all-new Prismatic Sound Modelling TD-50 V-Drums module. Presenting incredibly realistic drum sounds for all of your favourite play-along tracks and artists. This A&C Hamilton exclusive product comes FREE with the purchase of any TD-50 V-Drum Kit. The Artist Collection comes pre-loaded onto one of our unique SD Cards that is easily assignable to any spare User Kit on your Roland TD-50 module. Artists such as Kygo and Adele will be included on this SD Card as well as other more generic custom patches suitable for a variety of live and studio sessions. For more information on this unique product, check out our demo videos for our previous version of The Artist Collection for TD-25 and TD-30 in our Videos tab or call us today and speak to our Drum Specialist. Keep checking back for more information on this as it is developed.

    Dynamic Prismatic Sound Modeling brings your drumming to life

    Great drummers demand great performance. The new TD-50 is a powerful new drum sound module whose original Prismatic Sound Modeling technology means that every element of your playing style is caught and conveyed in thrilling detail. Working alongside the newly developed digital trigger pads for ride and snare, with our most advanced trigger-sensing technology yet, the TD-50's high-resolution processing gives you the most lifelike, resonant and expressive sounds you'll hear from an electronic kit.

    Customise your sound for live sessions and studio work

    A variety of musical scenarios are no problem with the TD-50, which offers a choice of onboard kits to suit every session. This advanced new module also supports deep sound customization, including basic adjustment of heads and shells, layering of internal and user samples, and adjustment of overhead mics and ambience control. For tailored performance, the compressor and 3-band EQ effect can be controlled for each pad individually, while three independent multi-effect sections let you treat specific drums with 30 effect types such as delay, flanger and saturator. The 2-band multi compressor and 4-band equalizer let you change the output balance and volume, depending on whether you're in the studio or onstage. The new Snapshot feature is a fast way to asses and compare any edits to your sounds before making permanent changes.

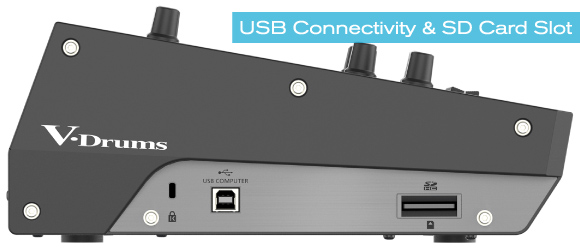

    Play with your own WAV files and record easily to DAW

    As a creative drummer, you'll love the TD-50's open-ended connectivity, which lets inspiration flow in both directions. Using the module's SD card slot, it's easy to play external WAV files, then trigger them using any Roland drum or cymbal pad you connect. Loop or layer your own WAV file sounds alongside the internal sounds, while controlling audio and volume via the TD-50's front panel. When you write a great groove, simply connect the TD-50 module to PC/Mac by USB cable for multi-track recording on your favourite DAW. For flexibility, up to 10 channels can be recorded separately, then easily edited for tone colour and more, and there's a choice of audio sampling formats (48kHz, 96kHz and the standard 44.1kHz).

    Hit the stage faster with direct PA connection and 8 Direct Outs

    If you play live every night, the TD-50 could help avoid the time and effort of a lengthy setup. The first Roland drum sound module to feature a balanced XLR Master Out, it allows direct connection to a PA system without the need for a direct injection (DI) box. You'll also find 8 Direct Outs (TRS). Assigning the pad to any of the individual outputs is simple, while convenient master/phones volume controls and group faders balance the output level for each pad instantly. You can even send the output via the phones output, to control the level of your monitor sound without routing it through the PA.

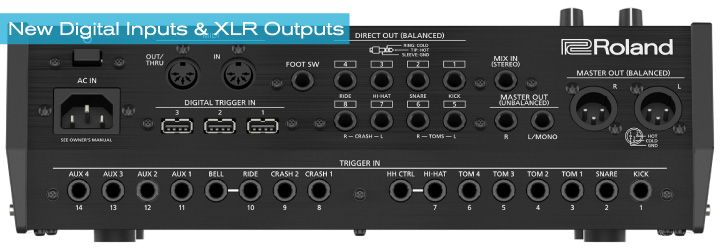

    Roland TD-50 Digital Inputs & Digital Outputs

    Tutorial features to develop your technique

    The TD-50 is the choice for serious drummers - but there's always room for improvement. The TD-50 doesn't just let your drum technique shine, but actively improves it, too, offering tutorial features that help you get the best from practice sessions. Whether you lock down your timing with the onboard Quiet Count feature, or import and play along to backing tracks via the SD card slot, it's easy to get inspired - even when you're practising alone.

    Record drumming performances

    New to the TD-50 Drum Sound Module is the unique audio record function. Simply hit record and start playing to record your performance. If you're playing to a click or to a backing track, there's an option to record with the drums only or record both drums and track together. Your recordings can be easily exported too, for upload and editing in your DAW. It's never been easier for a drummer to record a drum groove.

    Roland TD-50: Drum Sound Module Specifications

    Drum Kits

    • 100

    Instruments

    • More than 400

    Effect Types

    • Pad Compressor: each pad
    • Pad Equalizer: each pad
    • Room Type: 25 types
    • Reverb Type: 5 types
    • Stereo Enhancer
    • Multi-Effects: 3 systems, 30 types
    • Master Compressor
    • Master Equalizer

    User Sample Import

    • Number of User Sample: Maximum 500 (includes factory preloaded user samples)
    • Sound Length (total): 24 minutes in mono, 12 minutes in stereo
    • File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

    Song Player (SD Card)

    • Audio File: WAV (44.1 kHz, 16/24 bits), MP3

    Recorder

    • Recording Method: Realtime
    • Maximum Note Storage: approx. 40,000 notes
    • Export File Format: WAV (44.1 kHz, 16 bits), SMF

    Display

    • Graphic LCD 256 x 80 dots
    • TRIGGER ACTIVITY Indicator (LED)

    Faders

    • 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

    External Memory

    • SD Card (SDHC supported)

    Connectors

    • TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
    • DIGITAL TRIGGER IN port x 3: USB A type
    • MASTER OUT (UNBALANCED) jacks (L/MONO, R): 1/4-inch phone type
    • MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
    • DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
    • PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
    • MIX IN jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
    • MIDI (IN, OUT/THRU) connectors
    • USB COMPUTER port: USB B type (USB Hi-Speed AUDIO/MIDI)
    • FOOT SW jack: 1/4-inch TRS phone type
    • AC IN jack

    Number of USB Audio Record/Playback Channels

    • Sampling Rate (Original): 44.1 kHz
    • Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
    • Record: 10 channels
    • Playback: 4 channels

    Power Supply

    • AC 117 V, AC 220 V, AC 230 V, AC 240 V

    Power Consumption

    • 30 W

    Dimensions

    • 330 (W) x 255 (D) x 118 (H) mm
    • 13 (W) x 10-1/16 (D) x 4-11/16 (H) inches

    Weight

    • 3.3 kg/7 lbs 5 oz

    Accessories

    • Quick Start
    • Power Cord

    Options (sold separately)

    • Pad: PD series, PDX series, BT-1
    • Cymbal: CY series
    • Kick: KD series, KT series
    • Hi-Hat: VH-series
    • Hi-Hat Control Pedal: FD series
    • Acoustic Drum Trigger: RT series
    • Footswitch: BOSS FS-5U, FS-6
    • Personal Drum Monitor: PM-10
    • Drum Stand: MDS-50KV, MDS-50K

    Setting Up, Performing and Recording as a MIDI Device

    Setting up for Recording Multi-Track Audio

    Roland TD-50 - Out The Box Preset Drum Kits Demo

    Roland TD-50 Series V-Drums performance by Kai Hahto

    Roland VH-13 V-Hi-Hat sound preview. TD-50 series.

    Sound preview of Roland KD-A22 Kick Drum Converter with 22-inch Acoustic Drum Shell. TD-50 series.

    Tom sound preview of the Roland TD-50 module.

    Roland TD-50 V-Drums Sound Module for Pro Performance and Studio Sessions

    Roland CY-18DR V-Cymbal Ride sound preview. TD-5O series.
