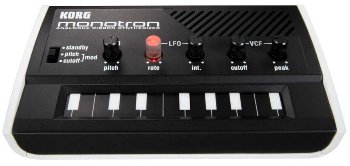

Korg Monotron
This instrument is discontinued

KORG monotron Analogue Ribbon Synthesizer - Analog synthesis returns, in the legendary KORG tradition.

Powered by two alkaline AAA batteries, the compact KORG monotron can be held in one hand. Although small enough to easily carry with you, the amazing monotron is packed with KORGs legendary analog technology, generating thick and powerful sounds.

Concentrating on the most important sound parameters, the controls have been streamlined as much as possible. The panel contains only five knobs and one switch. With this level of simplicity, now anyone can easily enjoy the world of analog synthesizers.

Borrowing the enjoyment of performing with a simple touch from Korgs wildly popular KAOSS products, the monotrons ribbon controller keyboard takes this ease of use even farther. Simple finger gestures can produce expressive effects such as vibrato and glide. Used in a band, you can expand your possibilities by harmonizing with another instrument - or taking center stage for a monotron solo!

The monotrons circuit is radically simple: one voltage-controlled oscillator, one voltage-controlled filter, and one low frequency oscillator. Since each knob directly applies a specific change to the sound, the process of sound creation is intuitive, and instantly understandable.

Gone are the deep lists of presets and parameters typical of todays synthesizers. Instead, the monotron encourages exploration and experimentation. The monotron provides the joy of sonic creativity thats at the heart of analog synthesis, making it an ideal choice for someone who is new to synthesizers, or for musicians who wants to expand their sonic palette.

The Korg monotron uses the same highly acclaimed VCF circuit as KORGs classic MS-10 and MS-20 semi modular synthesizers. Originally released over 30 years ago, these instruments are still coveted today for their aggressive, dynamic filters. The VCF Cutoff knob sets the frequency or tone of the filter; the VCF Peak knob adds emphasis. A powerful filter is an essential aspect of any analog synthesizer, applying dramatic tonal changes to the sound, and projecting an intense personality that will stand out in any live performance.

Just as on the original MS-20, the monotrons filter can be "patched into," allowing any external audio source to be processed by the monotrons filter. The input jack (AUX input) built into the monotrons compact body inserts the AUX input into the signal path right before the VCF. This provides a great way to connect a KAOSSILATOR, a guitar, or a digital audio player to the monotron and enjoy tone-bending filter effects.

You can switch the LFO to control either the oscillator pitch or the filter cutoff frequency. Both LFO Rate and LFO Intensity knobs are provided. As you turn the LFO Rate knob - featuring an embedded LED - the speed of the modulation effect and the speed of the blinking LED will change in tandem. Turning this knob can add another level of impact to your live performances.

A miniature speaker is built into the monotron. Along with the battery operation and compact size, this feature allows you to enjoy the monotron anywhere, at any time. The ultimate in compactness, this system brings you new possibilities for performance. Theres also a headphone output that you can use when creating sounds at home, for recording, or for connecting to an amplifier or PA system.

The Korg monotron Features:

• Full-fledged, true analog synthesizer: VCO, VCF, LFO
• Inspiring, easy-to-play ribbon keyboard
• Intuitive, fun-to-tweak controls
• Features the same classic analog filter found in the legendary Korg MS-10 & MS-20
• Filter any external source using the audio input jack
• LFO can modulate either pitch of filter cutoff
• LFO Rate knob features cool LED visual indicator
• Battery operation and palmtop size equals true portability
• Internal speaker/headphone jack lets you enjoy the sound anywhere - alone or with friends!
• Audio Path: VCO, VCF, LFO
• Knobs: VCO Pitch; LFO Rate; LFO Intensity; VCF Cutoff; VCF Peak
• LFO Switch: Assignable to Oscillator Pitch or Filter Cutoff
• Controller: Ribbon Controller
• Volume: Headphone Volume
• Aux Input: 1/8" Stereo Jack
• Headphone Output: 1/8" Stereo Jack
• Speaker: Miniature internal; Disabled when headphones are in use.
• Power Supply: AAA Alkalines (x2)
• Dimensions: 120 mm (W) x 72 mm (D) x 28 mm (H) / 4.72 (W) x 2.83 (D) x 1.10 (H)
• Weight: 95g / 3.35 oz. (without batteries)
