Current Model

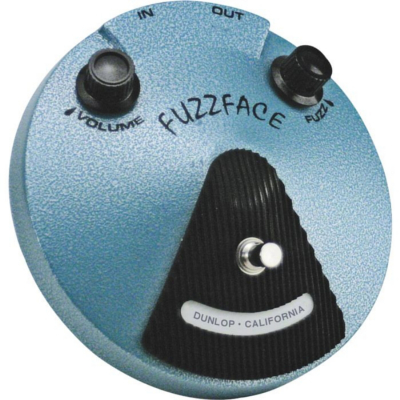

Dunlop JH-F1 Jimi Hendrix Fuzz Face
This instrument is discontinued
Other Options
£92.19
Boss CH-1 Super Chorus Guitar Pedal--Available Now--
£93.64
Boss CS-3 Compressor Sustain Pedal--Available Now--
£139.00
Boss RV-6 Reverb Pedal--Available Now--
| info | specs | videos |
|---|
The Dunlop JH-F1 Jimi Hendrix Fuzz Face Effects Pedal is a meticulously faithful reproduction of the 1969-70 Dallas Arbiter Fuzz Face that Jimi used on classic albums like Band of Gypsys.
The Dunlop JH-F1 Jimi Hendrix Fuzz Face Effects Pedal is dedicated to Hendrix, the master of fuzz - an artist with many subtle shadings at his command. His love affair with the legendary Fuzz Face pedal began in the early days of the Experience and continued to evolve throughout his brief but blazing career. Dunlop's engineering department examined hoards of vintage Fuzz Faces, honing in on a few units which possessed that unmistakable Jimi voodoo.
The Fuzz Face is built around the toneful BC108 silicon transistor. It is authentic in every detail, down to it's hand-wired brown circuit board with circuitry carefully matched to the original specs. The look is 100% accurate too-that groovy circular chassis with tooled clones of the original Fuzz Face knobs in the rare and vintage turquoise hammertone finish. A truly playable collectable for any Hendrix or Fuzz Face fanatic. Powered by a 9 volt battery.
The Dunlop JH-F1 Jimi Hendrix Fuzz Face Effects Pedal Features:
- A high quality reproduction of the 1969-70 Dallas Arbiter Fuzz Face
- Footswitch toggles effect on/bypass
- Volume knob controls total output gain
- Fuzz knob controls intensity (depth) of fuzz tone
- Input Impedance: 10 Kohm
- Output Impedance @ 1 KHz Maximum Volume: 2 Kohm
- Output Impedance @ 1 KHz -6dB Volume: 115 Kohm
- Maximum Output Level: -1.4 dBm (~540 mV P-P)
- Maximum Gain (Toe Down): 500 uA @ 9 VDC
- Effect Switching: THWBP
- Power: Single 9 volt alkaline battery (PP3 Type)
